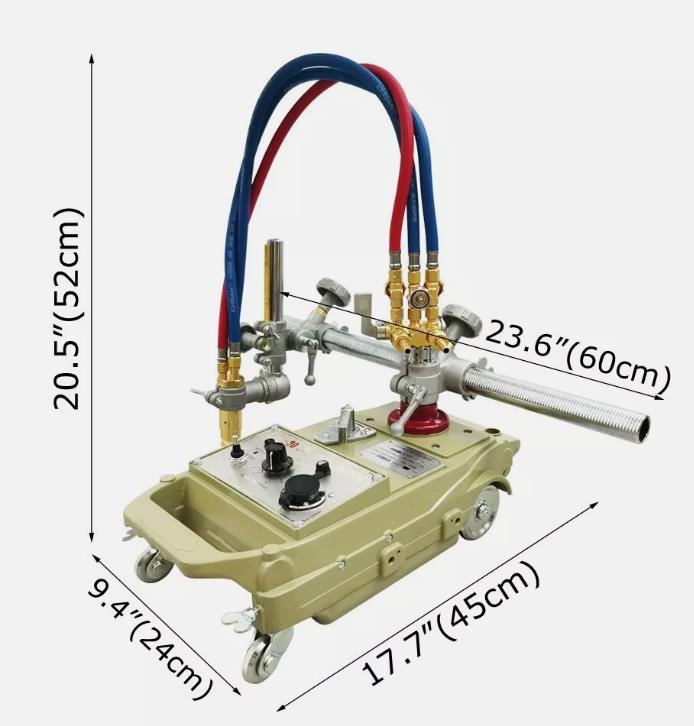

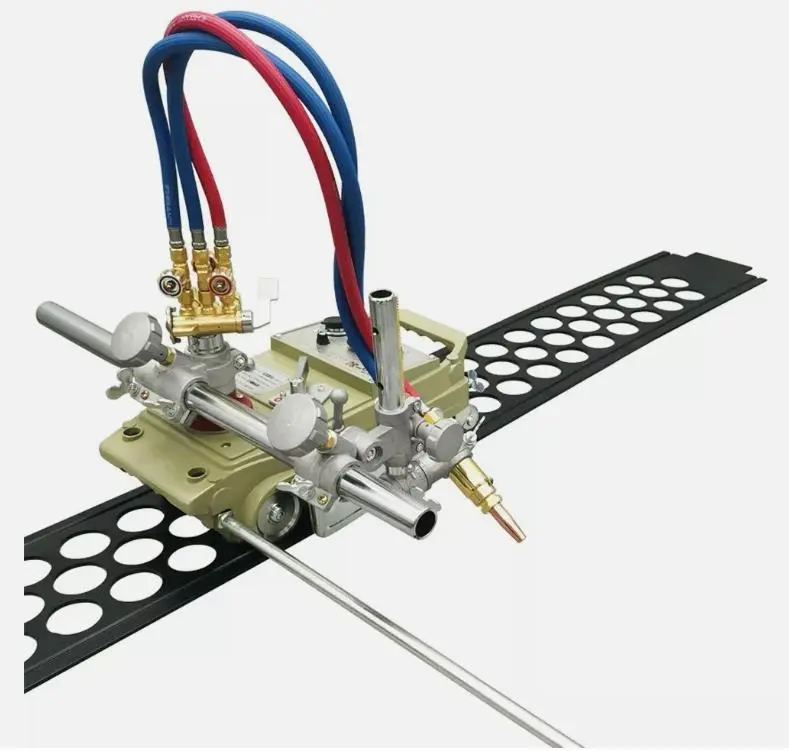

Gas Cutting Machine Flame Cutting Machine Flare Track Burner

Product Overview

- Adopt thyristor speed control, Steady speed change,walk smoothly.
- The fuselage adopts high strength alloy aluminum precision die-casting and durable.
- The Angle of the cutting torch can be adjusted freely. High cutting accuracy.
- With straight cut, can cut I, Y, V groove.Double torch can be cut at the same time.
- You can cut steel plates of different thickness by changing the cutting nozzle.Mesh guide is not easy to deform.

Product Parameters

Voltage:

AC110V

Automatic Cutting Speed:

1.97"-29.5"/min(50mm-750mm/min)

Thickness of cut steel plate:

0.16"-17.7"(4mm-450mm)[It depends on the type of cutting nozzle]

Cutting Circle Diameter:

7.87"-78.7"(200mm-2000mm)

Cutting torch specifications:

Propane:G03#1 *1 +G03#0 *1
Acetylene:G02#1 *1

Track length:

5.9ft(1.8m)

Machine package size:

26.4"*12.2"*11.0"(67cm*31cm*28cm)

Track packing size:

48.03"*19.05"*3.15"(122cm*23cm*8cm)

Machine net weight/gross weight:

29.1LB(13.2kg)/30.0LB(13.6kg)

Product Parameters

Propane

Cutting Thickness(unit:mm)

Acetylene

Cutting Thickness(unit:mm)

G03#00

4-9

G02#00

5-10

G03#0

5-10

G02#0

10-20

G03#1

10-20

G02#1

20-30

G03#2

20-35

G02#2

30-50

G03#3

35-60

G02#3

50-70

G03#4

60-90

G02#4

70-90

G03#5

90-130

G02#5

90-120

G03#6

130-180

G02#6

120-160

G03#7

180-250

G02#7

160-200

G03#8

250-300

G02#8

200-270

G03#9

300-380

G02#9

270-350

G03#10

380-450

G02#10

350-400

Note:Under normal circumstances, the cutting thickness of 5-100mm can meet the normal demand, more than 100mm on the gas pressure requirements will be improved !!!

Product Features & Advantages

Shifting Unit

The moving device above the bar
can make the cutting head move
around, can accurately adjust the
cutting torch cutting position,
processing accuracy is higher.

Position Gauge

The machine is equipped with a standard positioning gauge, which can be used for circle cutting after installation, and can cut circles with a diameter range of 7.87"-78.7", providing more processing options!

Control Panel

The control panel includes the
function of forward/backward
and speed adjustment, the fuse
is easy to change, and the case
is spraying plastics to prevent
corrosion and clean easily.

Cutting Head

Cutting torch is made of pure
copper material, high temperature
resistant, with Angle adjustment
scale, can adjust the cutting head
Angle, cutting precision is higher.


Metal Casters

The four casters of the machine
are made of metal, wear-resistant
and high-temperature resistant.
They are perfectly matched with
their own track and move smoothly
without shaking.

Gas Distributor

Gas distributor is made of high-
quality alloy, with good sealing
performance. Intake volume of
the two nozzles can be controlled
precisely through valves and
quick switch.


Product Presentation & Details

Item Included

CG1-30CB Flame Cutting Machine *1

Track *1(5.9ft)

The power cord *1

Acetylene Cutting Torch *1

Propane Cutting Torch *2

English Manual *1

Fork wrench *1

Nozzle cleaner *10

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
