Portable handle Gas Cutting Machine

110V Torch Track Burner Portable handle Gas Cutting Machine(Contains one track)

Product Detail

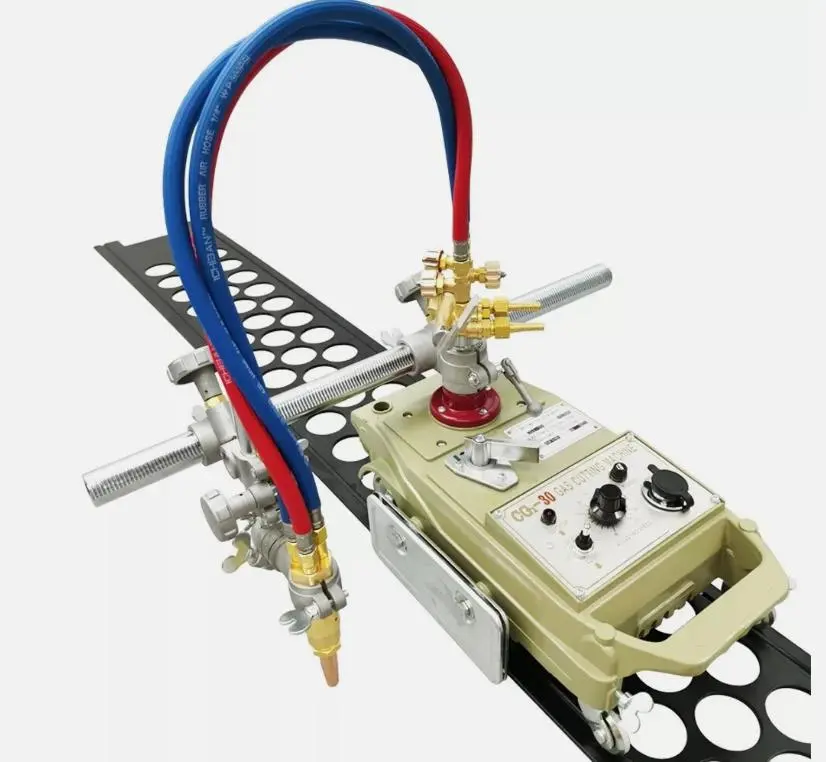

Portable handle Gas Cutting Machine

Product Overview

This is a new portable gas cutting machine. It will automatically cut steel by using a track to run along. There is a track each approximately 5.9' in length. It can cut straight or beveled clean edges. This item will ship in two separate packages (one the machine and the other the track). Welding hose to connect to the machine not included.

Product Parameters

Voltage:	AC110V
Automatic Cutting Speed:	1.97"-29.5"/min(50mm-750mm/min)
Thickness of cut steel plate:	0.16"-17.7"(4mm-450mm)[It depends on the type of cutting nozzle]
Cutting Circle Diameter:	7.87"-78.7"(200mm-2000mm)
Cutting torch specifications:	Propane:G03#1 1 +G03#0 1 Acetylene:G02#1 *1
Track length:	5.9ft(1.8m)
Machine package size:	26.4"12.2"11.0"(67cm31cm28cm)
Track packing size:	48.03"19.05"3.15"(122cm23cm8cm)
Machine net weight/gross weight:	29.1LB(13.2kg)/30.0LB(13.6kg)

Product Parameters

Propane	Cutting Thickness(unit:mm)	Acetylene	Cutting Thickness(unit:mm)
G03#00	4-9	G02#00	5-10
G03#0	5-10	G02#0	10-20
G03#1	10-20	G02#1	20-30
G03#2	20-35	G02#2	30-50
G03#3	35-60	G02#3	50-70
G03#4	60-90	G02#4	70-90
G03#5	90-130	G02#5	90-120
G03#6	130-180	G02#6	120-160
G03#7	180-250	G02#7	160-200
G03#8	250-300	G02#8	200-270
G03#9	300-380	G02#9	270-350
G03#10	380-450	G02#10	350-400

Note: Under normal circumstances, the cutting thickness of 5-100mm can meet the normal demand, more than 100mm on the gas pressure requirements will be improved !!!

Product Features & Advantages


Shifting Unit The moving device above the bar can make the cutting head move around, can accurately adjust the cutting torch cutting position, processing accuracy is higher.	Position Gauge The machine is equipped with a standard positioning gauge, which can be used for circle cutting after installation, and can cut circles with a diameter range of 7.87"-78.7", providing more processing options!	Control Panel The control panel includes the function of forward/backward and speed adjustment, the fuse is easy to change, and the case is spraying plastics to prevent corrosion and clean easily.

Cutting Head Cutting torch is made of pure copper material, high temperature resistant, with Angle adjustment scale, can adjust the cutting head Angle, cutting precision is higher.	Metal Casters The four casters of the machine are made of metal, wear-resistant and high-temperature resistant. They are perfectly matched with their own track and move smoothly without shaking.	Gas Distributor Gas distributor is made of high- quality alloy, with good sealing performance. Intake volume of the two nozzles can be controlled precisely through valves and quick switch.

- Adopt thyristor speed control, Steady speed change,walk smoothly.
- The fuselage adopts high strength alloy aluminum precision die-casting and durable.
- The Angle of the cutting torch can be adjusted freely. High cutting accuracy.

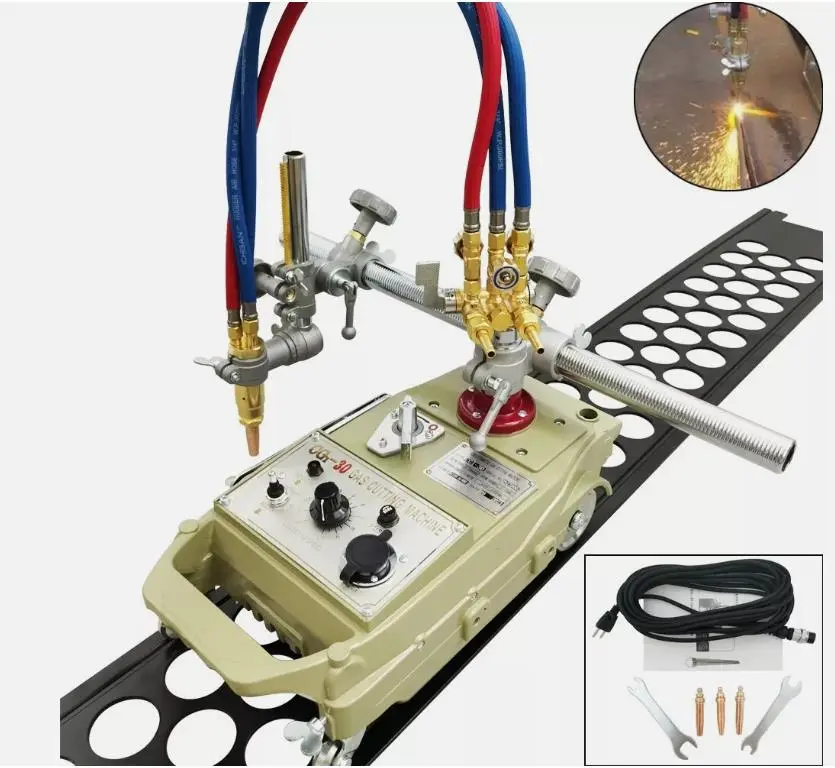

- With straight cut, can cut I, Y, V groove.Double torch can be cut at the same time.
- You can cut steel plates of different thickness by changing the cutting nozzle.Mesh guide is not easy to deform.

Item Included(028346)

CG1-30CB Flame Cutting Machine *1	Track *1(5.9ft)	The power cord *1
Acetylene Cutting Torch *1	Propane Cutting Torch *2	English Manual *1
Fork wrench *1	Nozzle cleaner *10
