PORTABLE TRACKLESS WELDING CARRIAGE

Ideal for automatic horizontal fillet, lap and butt welding operations
Controls are available to perform continuous and/or stitch weld operations
Dual gun holder assembly is available for efficient simultaneous welding
Wheels on the standard Moggy can be reversed to allow the moggy to run on standard v-groove track
The magnetic moggy has a magnetic base that clings to the vertical member for out of position applications

Product Detail

Automated Trackless Welding Carriage

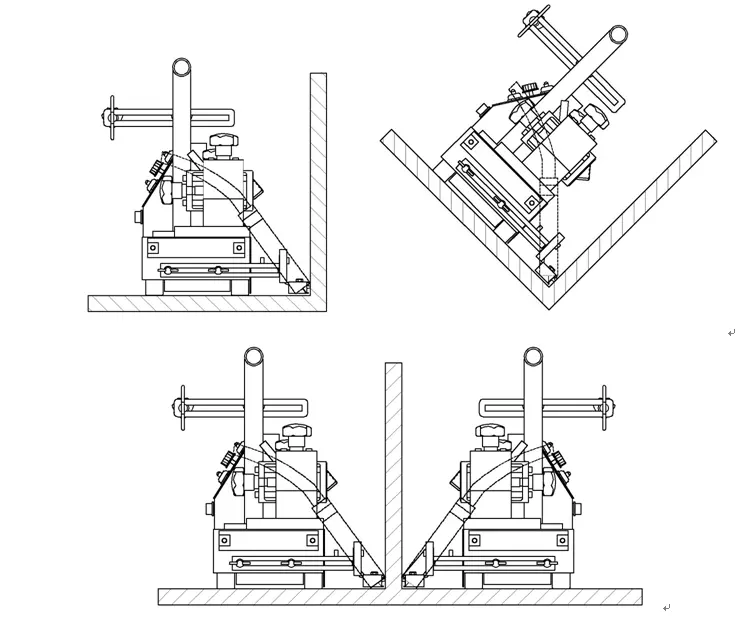

The friction drive travel carriage is designed to perform Horizontal Fillet Welding, Lap Welding and Butt Welding. It can be fitted with a Gullco Compact Oscillator to perform multi-pass welding. These operations can be performed on horizontal fillets with a minimum radius of 39 in. (1 meter) and up to a 30º incline. Following is a brief description of the Moggy and components that make up the system.

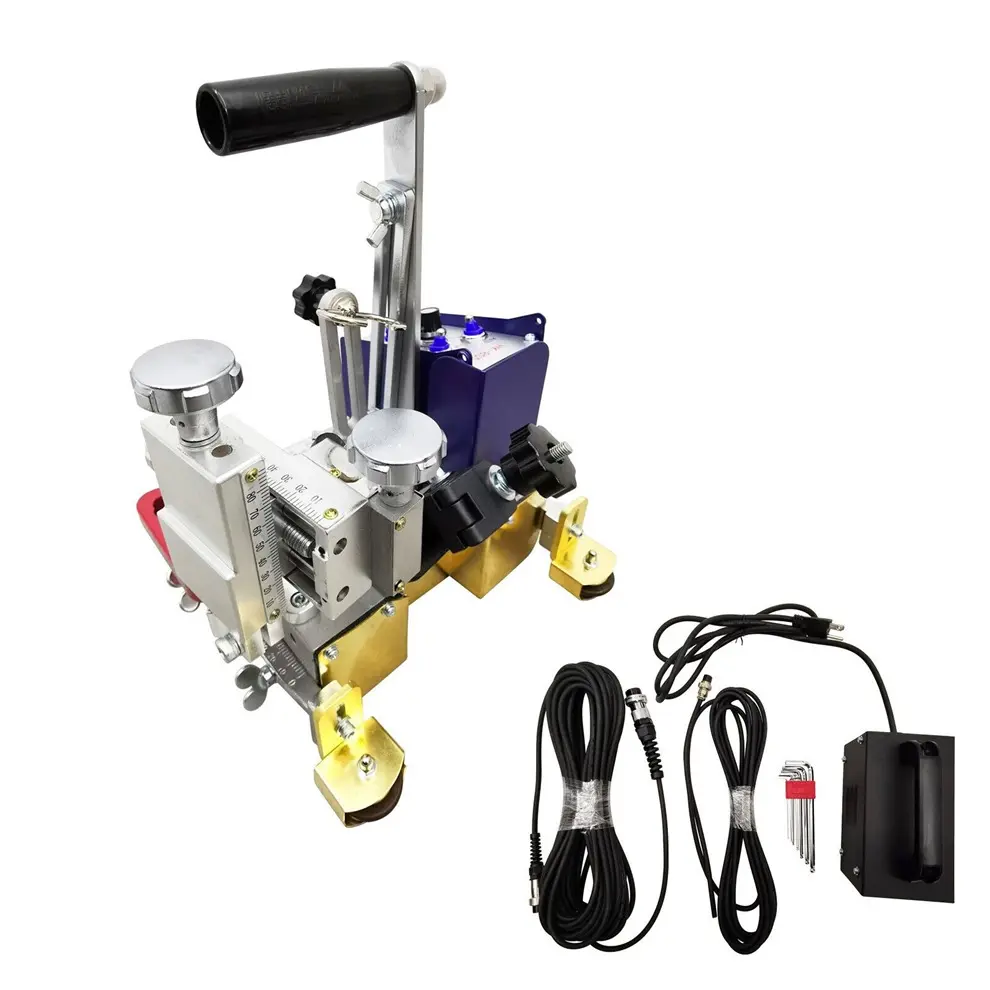

It is a lightweight, portable, four wheel friction drive travel carriage that can be used with or without track to automate welding operations. A speed potentiometer provides infinite speed selection within the 3.25-100.50 in/min (8.26-255.27 cm/min) range. The unit comes complete with adjustable guide rolls, travel limit switch assembly, vertical and horizontal slides providing 1 3/4" (44.4mm) adjustment and a semi-automatic gun holder. It is designed to run on a horizontal path against a vertical surface or a vertical path against a horizontal surface (Magnetic ) to perform a fillet weld.

The Standard welding carriage can be adapted for use on standard 6" (152.4mm) v-groove track by reversing the wheel assemblies. Safety is assured by using Gullco low voltage 24 volt DC highly advanced control power supply system that is available in 3 line voltage inputs ... 42, 115 and 230 volt AC 50/60 Hz.

Trackless Magnetic Trackless Welding Travel Carriage

"low cost, highly efficient automation of out-of-position fillet, lap and butt welding applications"

This Magnetic is essentially the same as the Standard described inside this folder except it has a magnetic base and heavy duty urethane 0.875" (22.23 mm) wide wheels for continuous travel in the horizontal and vertical position.
