Roller frame for welding and fabrications

Specifications of Tank Turning Roll

  • Input Power: AC 120 volt 60 Hz Single Phase
  • Maximum load capacity per set of one drive roll and one idler roll: 6,600 lb.
  • Maximum work-piece diameter: 79 in.
  • Work-piece diameter range: 7.9 in. to 78.7 in.
  • Speed Range: 3.5 to 35.4 in./min.
  • Approximate shipping weight per set: 580 lb.

    Tank Turning Roll

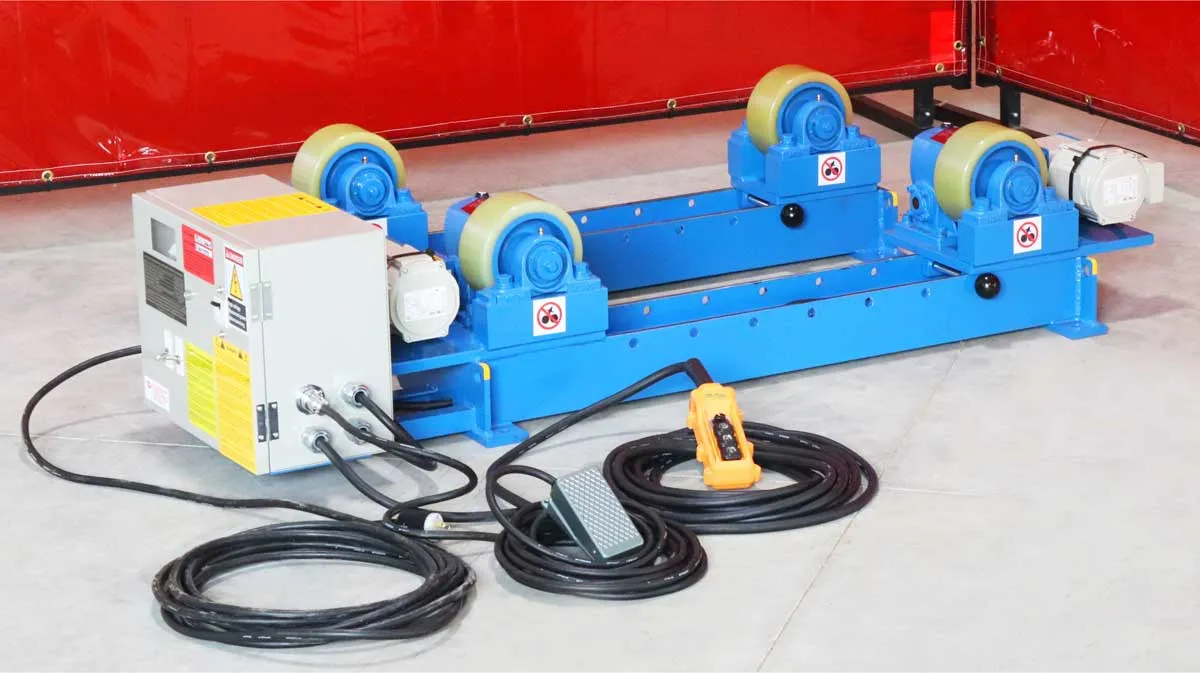

    RD-3-INW Tank Turning Roll

    RD-3-INW Tank Turning Roll

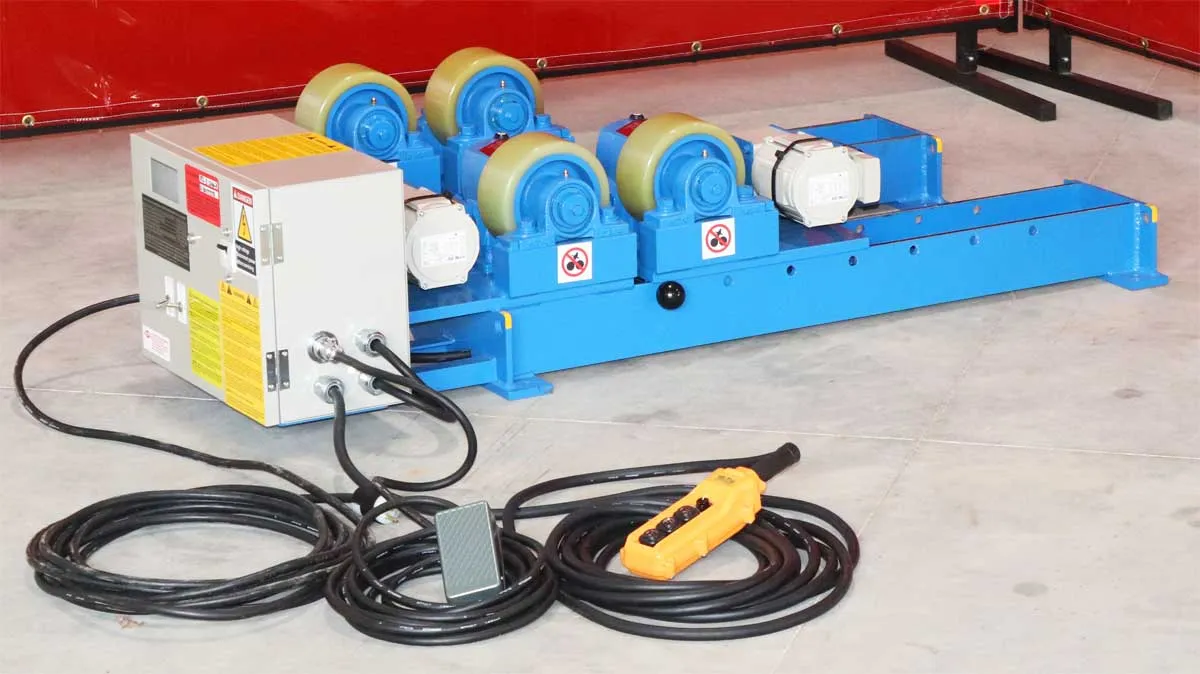

    The Tank Turning Roll with power and idler rolls at the minimum distance.

    MAC Model RD-3-INB Tank Turning Roll

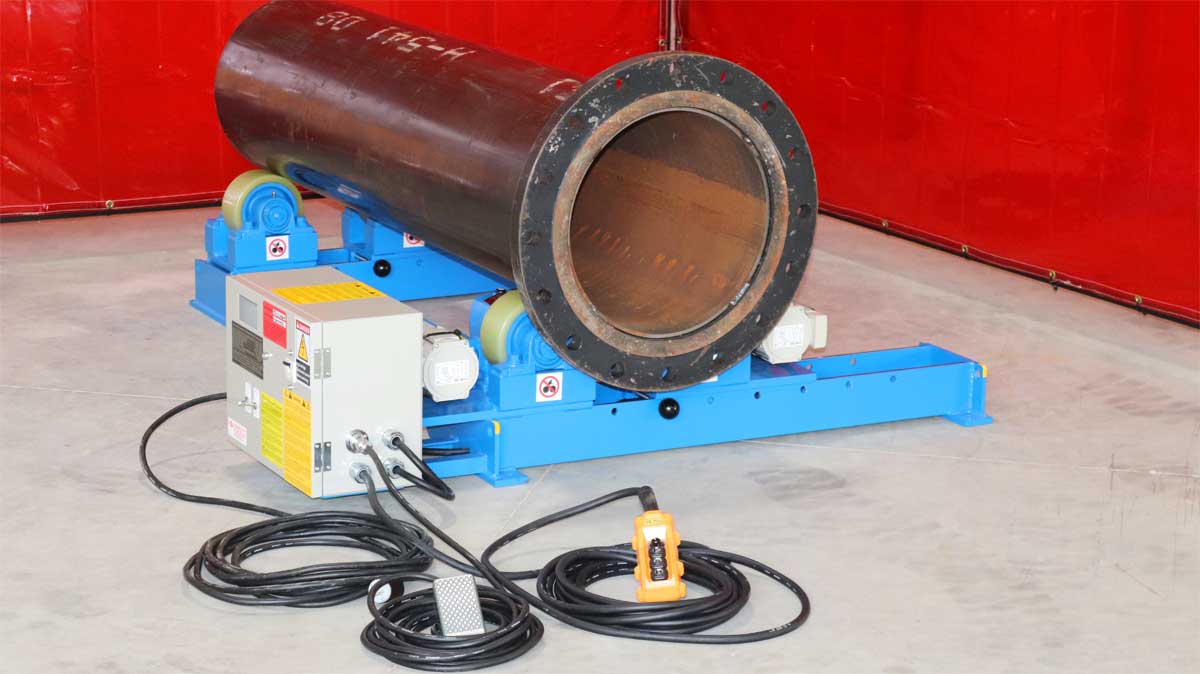

    Above:  Tank Turning Roll turning a 16 inch diameter pipe.

    Standard Features of Tank Turning Roll

    • The model Tank Turning Roll features both drive rolls independently powered providing excellent driving
    • On/off electric foot control with forward and reverse switch at the control box.
    • Adjustable roll to roll center distance for optimum contact angle.
    • Each worm gear drive system is oil immersed for long life and sealed from contaminants such as weld spatter and slag.
    • Hand held push button pendent control with maintained forward, stop, reverse and infinitely variable speed adjustment.
    • Adjustable roll to roll center distance for optimum contact angle.
    • Both drive rolls independently powered eliminating the many problems associated with drive shaft systems.
    • Separate drive roll & idler roll allows for short or long work-pieces.
    • AC inverter drive with LED frequency display for speed adjustment.
    • Machined bed on idler and drive roll for greater accuracy.
    • Low voltage 24 volt D.C. operator controls.

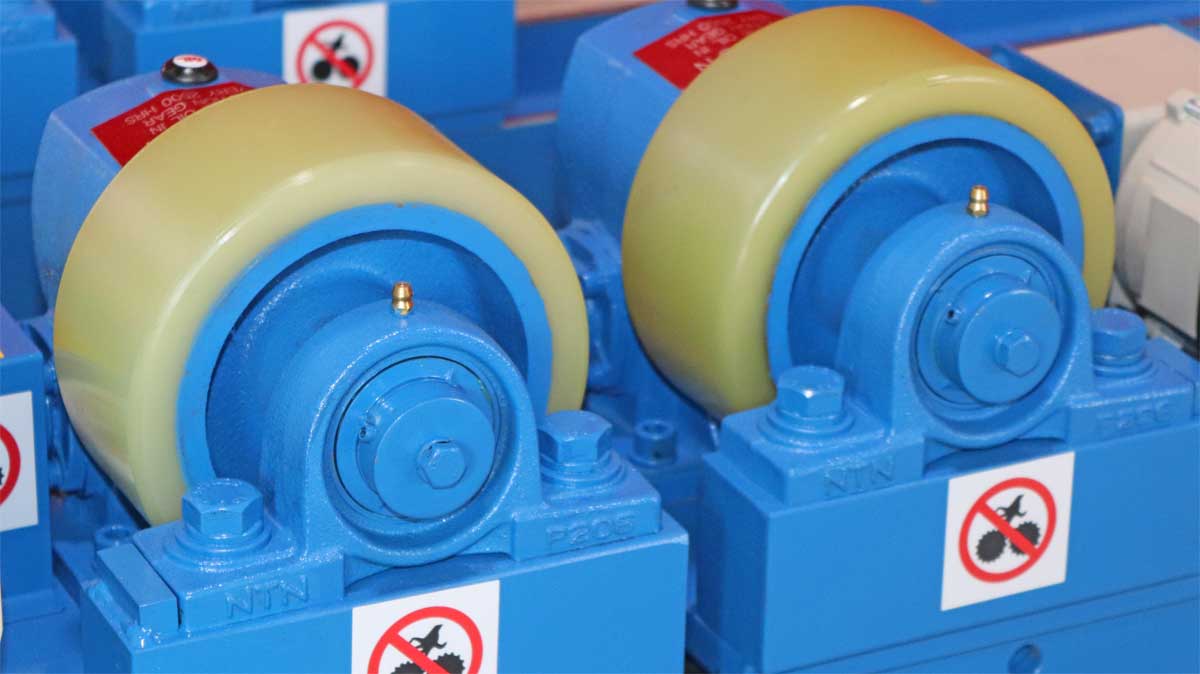

    RD-3-INW Tank Turning Roll Wheels

    Above: The Tank Turning Roll drive and idler rolls have a heavy duty iron core with extra thick urethane for long life and traction. The rolls will not mar or scratch materials such as stainless steel or aluminum.

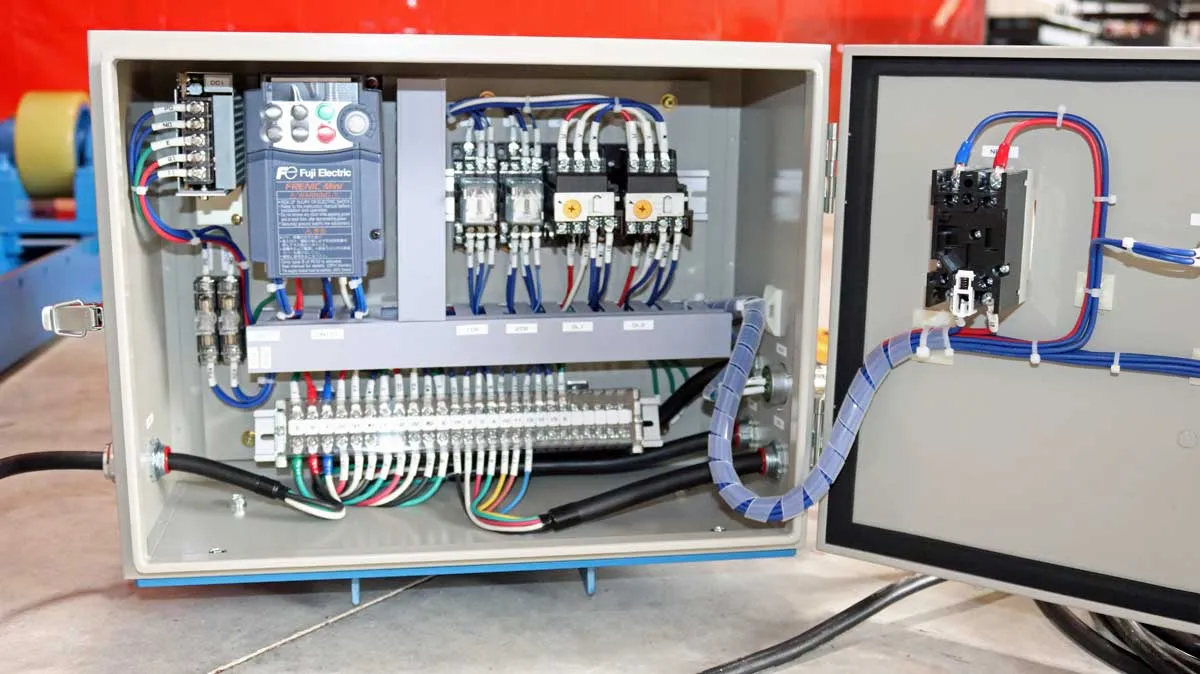

    RD-3-INW Tank Turning Roll Electrical Box

    Above:The Tank Turning Roll Electrical Box.
