Roller frame

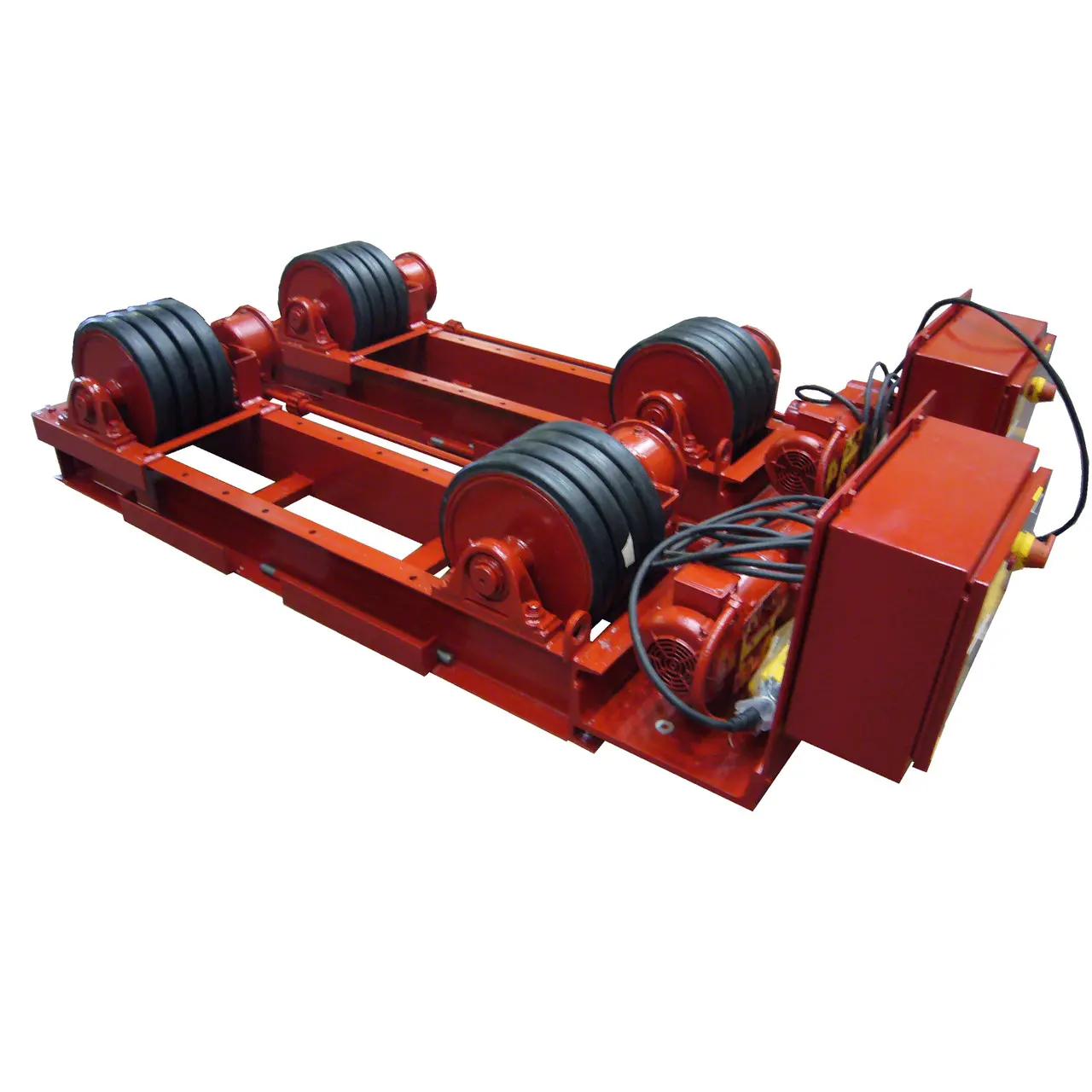

Tank Turning Roll
- Push button pendent control with maintained for, stop, rev and speed adjustment.
- Infinitely variable wheel center distance by hand wheel through lead screw allows for fast center distance adjustment and optimum contact angle.
- Heavy duty worm gear drives on each drive roll eliminates the many problems associated with drive shaft systems.
- Each drive system is oil immersed for long life and sealed from contaminants such as weld spatter and slag.
Specifications of the Turning Roll
- Input Power: AC 120 volts 60 Hz Single Phase
- Maximum load capacity per set of one drive roll and one idler roll: 22,000 lb.
- Maximum work-piece diameter: 120 in.
- Work-piece diameter range: 15.7 in. to 120 in.
- Speed Range: 3.9 to 39 in./min.
- Approximate shipping weight per set: 1,870 lb.
Standard Features
• Push button pendent control with maintained forward, stop, reverse, E-stop and roll speed adjustment.
• On/off foot control with quick plug in for easy removal and storage.
• Control voltage stepped down to 24 volt DC for operator safety.
• Variable roll to roll center distance by hand wheel & acme screw to maintain constant centerline of the work-piece.
• Each drive roll independently powered. Eliminating all of the many problems and constraints associated with drive shaft systems.
• All gear drive system is lubricated and sealed from contaminants such as weld spatter and slag. There are NO belts or chains that will stretch, wear or need adjustment.
• Heavy box frame construction with bed fully machined flat for accuracy.
• Heavy duty lifting lugs welded to the frame on both drive and idler rolls.
• Machined steel rolls with rubber center for traction provide greater accuracy.
• AC inverter drive with LED frequency display for speed adjustment.
