Weld Plus Pipe Welding Station

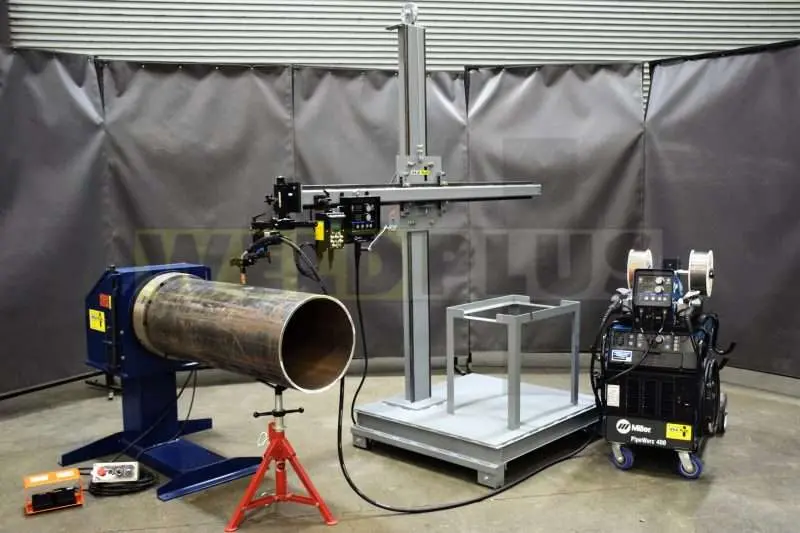

This Weld Plus Pipe Welding Station is a turn-key solution for pipe welding! The positioner is designed to rotate pipe while the torch stand holds a mig gun over the workpiece. In addition, a POPWELD weld oscillator manipulates the mig gun to assist with fill passes on the pipe. The POPWELD Pipeworx 400 is designed exclusively for pipe fabrication. Furthermore, A POPWELD ROI allows the operator to adjust weld parameters from a safe distance. In conclusion, this Pipe Welding Station is a must-have for any pipe fabricator!

Product Detail

6’x6′ Weld Plus Pipe Welding Station – Specifications & Features

6’ manual lift from 11” to 103”
6’ manual reach from 1/2” to 72” from the center of the mast
Manual travel car base with v-casters
Positioner capacity 3,000 lb @ 6” C.G.
Variable speed table rotation from 0.1 to 1.75 RPM
20” self-centering 3 jaw chuck
Center of the chuck to the floor- 36”
The Oscillator Dwells 0-9.9 seconds & speed ranges 1 deg to 22.55 deg per second
12” of horizontal oscillator adjustment
6” of vertical oscillator adjustment
Ten programmable memory spots
Two oscillator modes: Standard angular and Step Square Wave
6’ remote pendant for oscillation
25’ pendant control for part rotation
450 amps of DC welding output at 100% duty cycle
Wire Feed Speed: 50 IPM – 780 IPM
Processes: Flux Cored, Mig, Pulsed Mig, RMD, Stick, and DC Tig.
Complete MIG package: Dual wire feeder, 2 ea. MIG guns, ground, cables, and 2 ea. regulator flow-meters
Input Power: 230/460V 3-PH (Welder), 120V (Positioner)
