Weld Positioner

Description

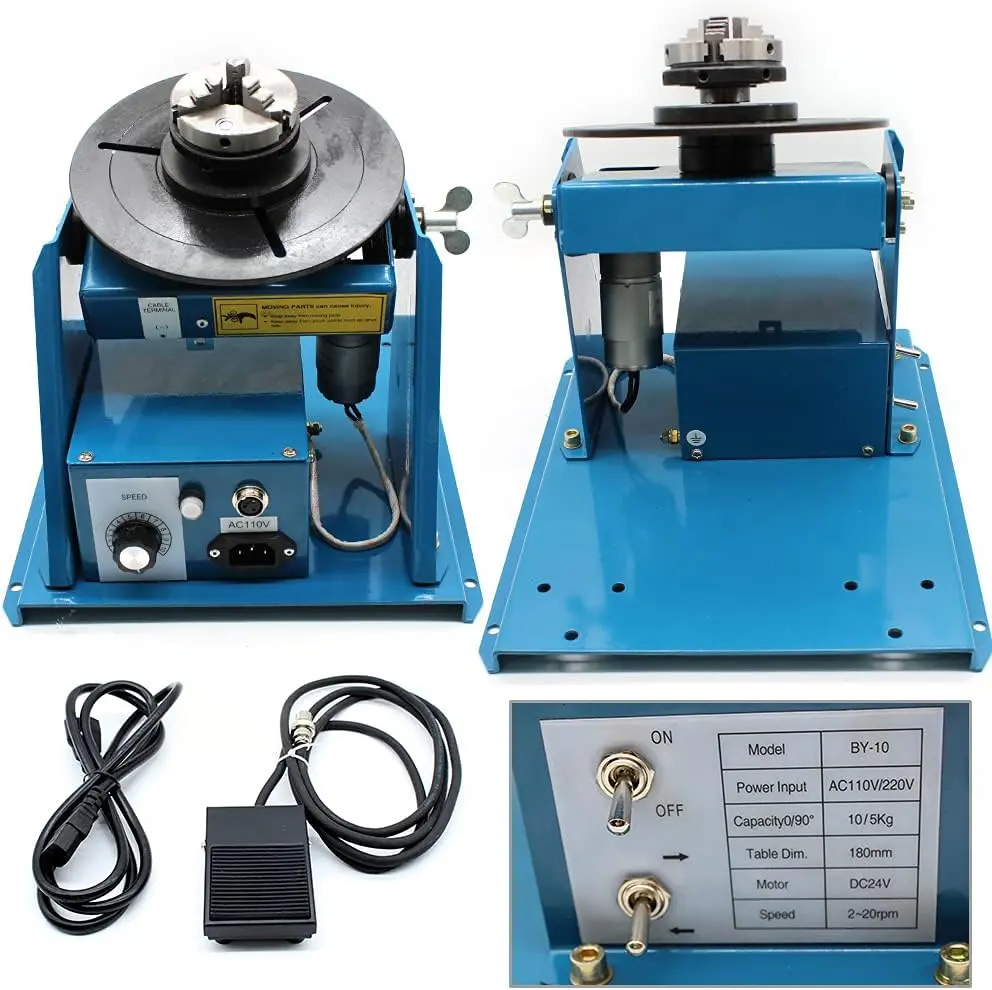

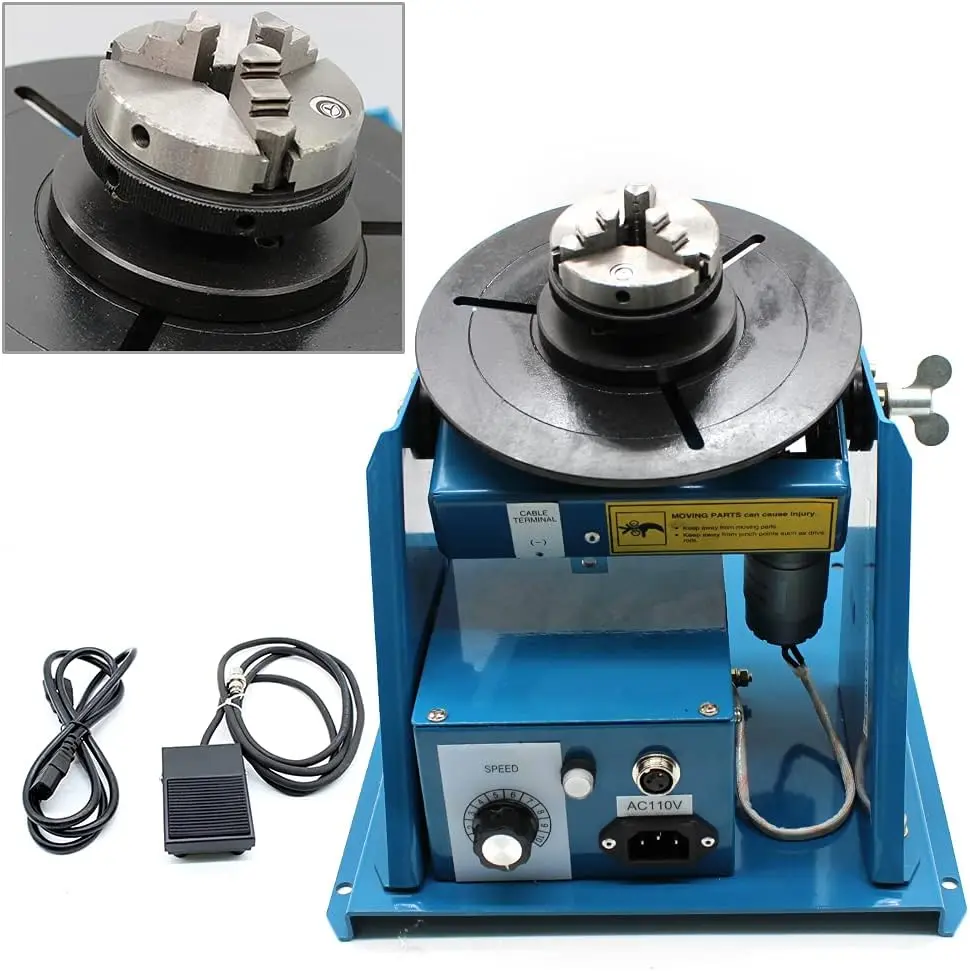

This rotary welding positioner turntable table is crafted from tough cast iron, ensuring long-lasting and reliable performance. Its compact design makes it ideal for installation on various countertops. The turnover mechanism with a self-locking function is both safe and stable, making it easy to use and practical in all situations. It runs smoothly, making it a high-efficiency option for welding work.

    Contact us
    Product Detail

    IMG_256





    IMG_257IMG_258IMG_259IMG_260IMG_261

    Details

    Power Indicator Light: It can indicate that the machine has been powered on and is working, bringing you more convenience during operation.

    Power Cord: The 5.9ft long power cord has sufficient length to facilitate your movement to the desired work position. It can also keep you away from the power supply, making it safer to use.

    Large Screws: High-quality large screws can firmly fix the machine and improve the overall stability of the machine.



    Application

    It can be fixed on the working table or specific tooling for clamping workpiece with manual welding, and can also be used with a welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing, and other processes. It is especially suited for welding flanges, tubes, rounds and other parts up to 22.05 lbs.



    Specification

    Color: Blue

    Model: BY-10

    Martial: Cast Iron

    Process: Spraying Molding

    Plug: US Standard

    Input Voltage: AC 110V

    Rated Welding Current: 80A

    Workbench Rollover: Manual

    Rotary Motor Voltage: DC 24V 15W

    Rotary Motor Power: 15W

    Working Table Speed: 2-10 r/min

    Max Speed: 10rpm

    Horizontal Loading Capacity: 10kg/22.05lbs

    Vertical Loading Capacity: 5kg/11.02lbs

    Working Table Tilting Angle: 0-90°

    Working Table Diameter: 180mm/7.09inch

    Foot Switch Cord Length: 202.5cm/6.64ft

    Power Cord Length: 183cm/5.9ft

    Product Size: 32*27*28cm/12.6*10.63*11.02inch

    Package Size: 35*30.5*34.5cm/ 13.78*12*13.58inch

    Net Weight: 8.55kg/18.85lbs

    Gross Weight: 9.25kg/20.39lbs

    IMG_262IMG_263IMG_264

    Package Included

    1*Rotary Welding Positioner Turntable Table

    1*Foot Switch

    1*Power Cord

    2*Clamping Handles

    1*English Manual
