Welding Carriage
products description
The term “POSITIONER” means the machines used to change position of work-piece on the table and to ensure smooth rotation of the work-piece at a required speed (variable speed in an extensive range). Positioner is ordinarily composed of (1) a table turning mechanism, and (2) table tilting mechanism.

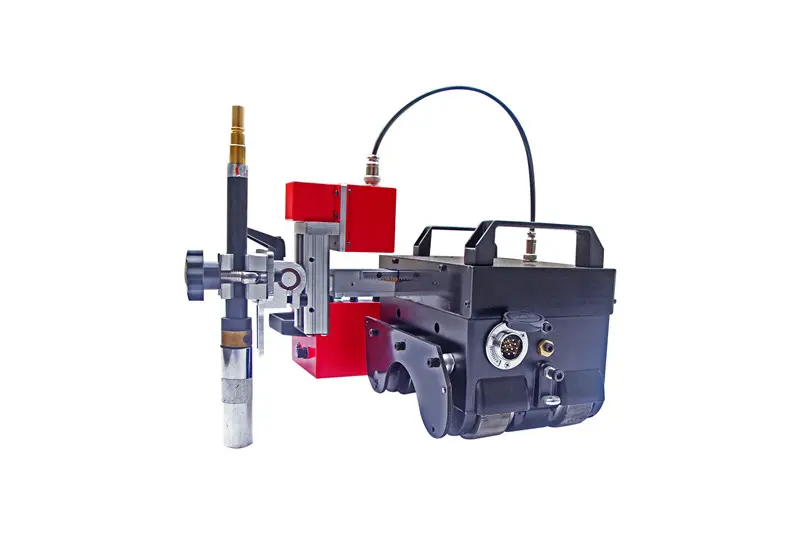

Welding carriages are industrial equipment that automates welding and cutting operations.
For some people, they are considered the first step in the automation of manufacturing and metallurgical companies.
As in the case of robotics, using welding carriages can increase speed and improve efficiency in production plants.
This way, processes can be completed with greater quality and uniformity.
products description
The term “POSITIONER” means the machines used to change position of work-piece on the table and to ensure smooth rotation of the work-piece at a required speed (variable speed in an extensive range). Positioner is ordinarily composed of (1) a table turning mechanism, and (2) table tilting mechanism.
High Capacity
Horizontal loading capacity: 30 kg / 66 lbs; Vertical loading capacity: 15 kg / 33 lbs; Working table diameter: 310 mm / 12.2 inches; working table height: 380 mm / 15.0 inches. It is made of stainless steel, featuring high quality and durability.
High Capacity
Horizontal loading capacity: 30 kg / 66 lbs; Vertical loading capacity: 15 kg / 33 lbs; Working table diameter: 310 mm / 12.2 inches; working table height: 380 mm / 15.0 inches. It is made of stainless steel, featuring high quality and durability.
products specification
| Voltage | 110V |
| Horizontal Loading Capacity | 30 kg / 66 lbs |
| Vertical Loading Capacity | 15 kg / 33 lbs |
| Working Table Diameter | 310 mm / 12.2 inches |
| Central Hole Diameter | 25 mm / 1.0 inch |
| Rotary Motor | 80W |
| Working Table Tilting Angle | 0-90° |
| Working Table Speed | 1-15r/min |
| Suitable Clamp | KP-125\200\300 |
