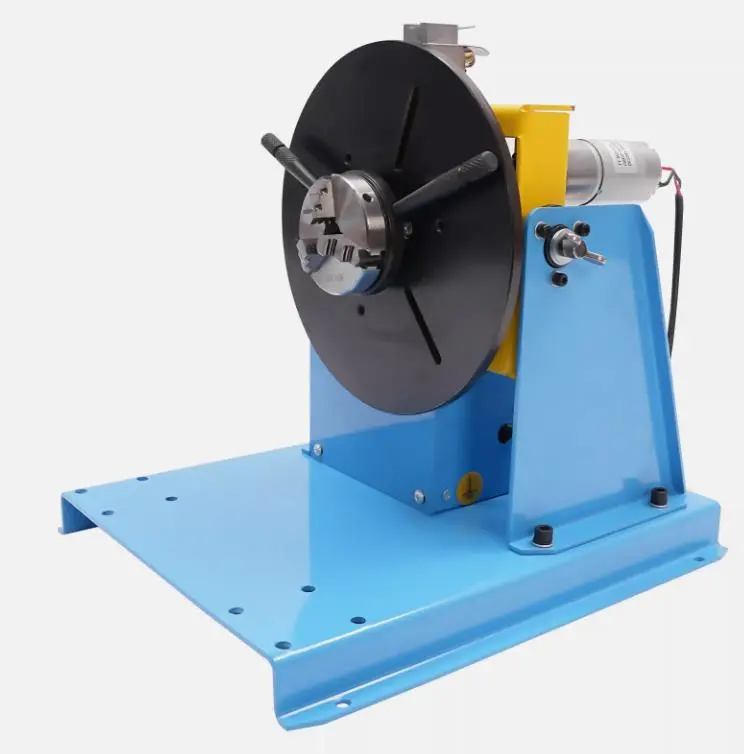

Welding Positioner 0-90° Positioning Turntable Table
Description
Our welding positioner is made of high-quality steel through blackening and spray molding processes, which is sturdy and durable. It is equipped with a 3-jaw chuck with a diameter of 2.56in to hold the welding element securely for your convenience. In addition, the low-speed operation and 0-90° tilt angle make it easy for you to weld more difficult components. It is also equipped with a foot pedal that controls the start and stop of the machine, so you can concentrate on welding with ease. It is a great assistant to help you finish your welding.
Key Features
Build to Last: It is made of high-quality steel through the blackening and spray molding processes, which has strong resistance to high temperatures and can ensure a long service life.
Precise Positioning: It is equipped with a 2.56in three-jaw chuck with a clamping range of 0.08-2.28in and a support range of 0.87-1.97in, which effectively prevents movement and dropping of weldments, thus significantly improving welding accuracy.
High Stability: It features a 20W DC drive motor that runs at low speeds with 1-12 rpm stepless speed regulation for stable operation. In addition, it has a load capacity of up to 11.02lbs (vertical) or 22.05lbs (horizontal) and forward and reverse functions, providing excellent stability to support efficient and precise welding.
Thoughtful Design: It can be tilted from 0-90° and securely fastened at the desired angle with butterfly bolts. The clear operator's station makes it easy to adjust the speed, connect the power supply, and more. 2 chuck keys make adjusting the tightness of the chuck jaws a breeze.
Safety Guard: The product is equipped with conductive carbon brushes that can effectively avoid the risk of electrical leakage, so you can use it with peace of mind.
Welding Assistant: With it, you have a more professional workbench for welding work. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding.
Easy to Install: The simple structure, complete accessories, and detailed English manual allow you to complete the installation and start using it in a short time.
Easy to Clean: Thanks to its smooth surface and simple structure, you can wipe the dirt from this machine with a rag(not included).
Ideal Gift: With its good performance and high practicability, it would be an ideal gift for your family, friends, and others who enjoy welding
Protective Package: To prevent damage to the product due to bumps in transit, we place sponges to protect the product as much as possible.

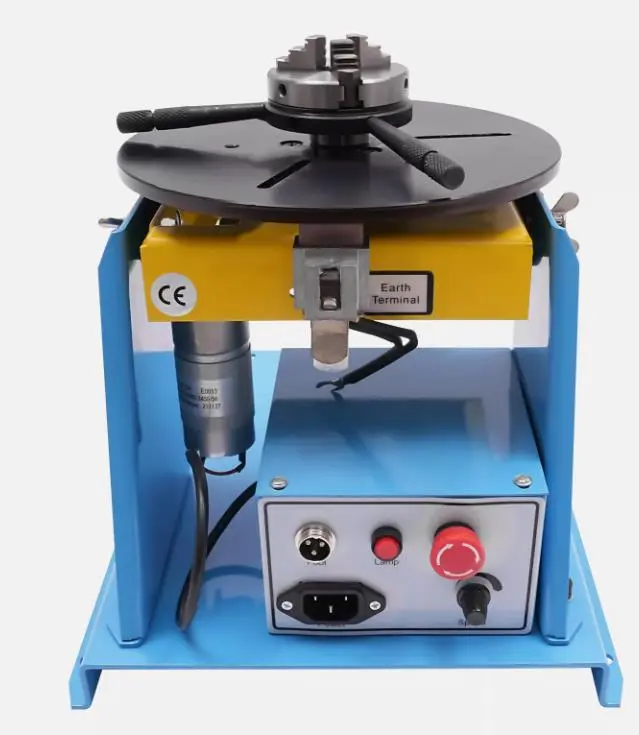

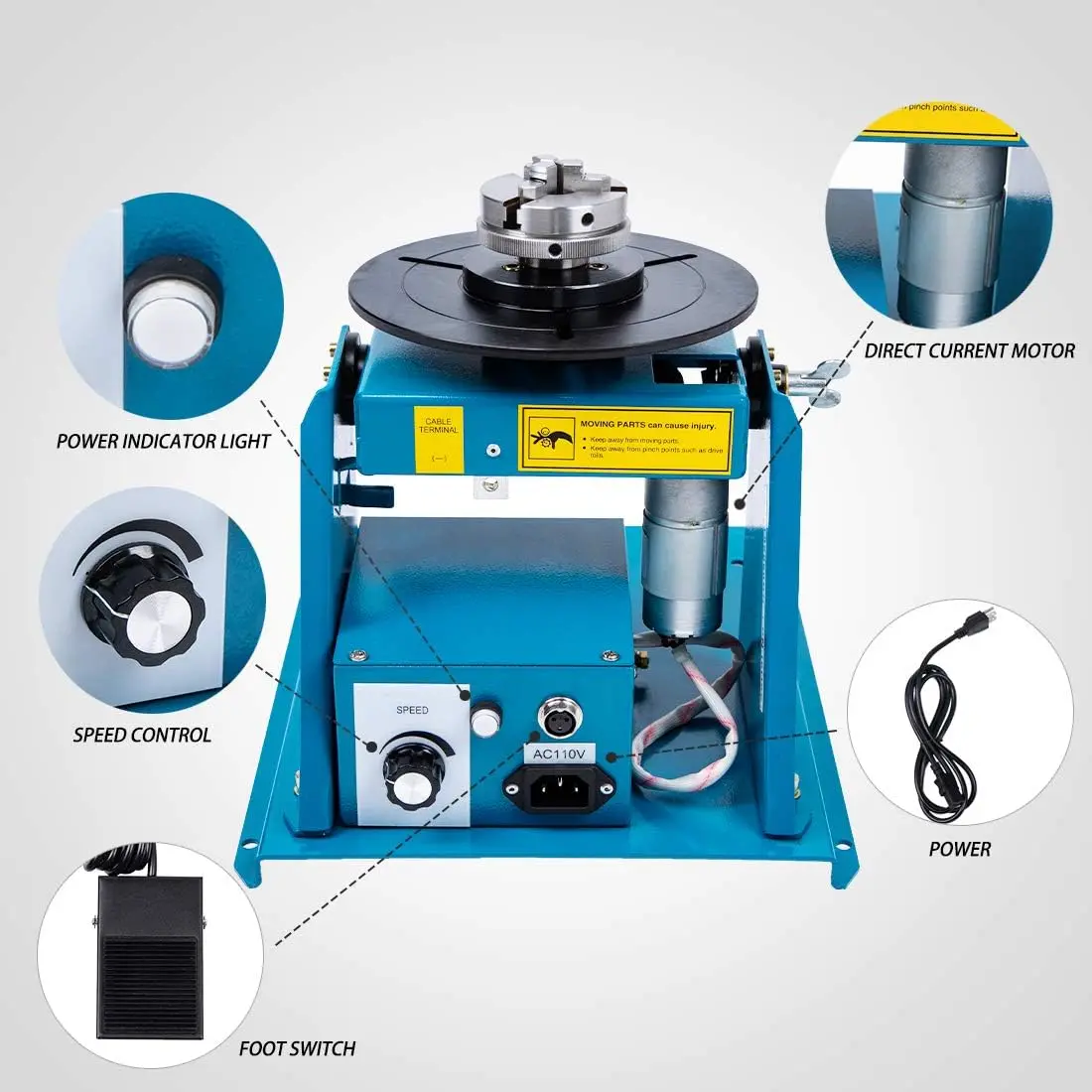

Details
Foot Pedal: It controls the starting and stopping of the machine.
Emergency Stop Switch: It can be used in emergencies to suspend the machine's operation for your subsequent repairs.
Power Indicator: It will light up when the product is plugged in and in working condition.
Stable Base: The square base and holes in the bottom stabilize the product nicely. In addition, the hole in the bottom can also be used to place a gun holder for holding the torch (not included).
Long Power Cord: The 4.92ft long power cord reduces usage limitations.
Application
It is mainly used for rotating and turning round and annular workpieces, so that the workpiece weld is placed in the optimum position for welding, such as horizontal, boat-shaped, etc. It can also be used to fix chucks or specific tools on the table to clamp the workpiece for manual welding, and can also be used to fix the workpiece on the table for cutting, grinding, assembling, testing, etc. It is especially suited for welding flanges, tubes, rounds and other parts up to 22.05 lbs.
Specifications
Color: Blue
Style: Modern
Material: Steel
Process: Blackening, Spray Molding
Mount Type: Countertop
Motor Type: DC Drive Motor
Assembly Required: Yes
Power Source: Corded Electric
Plug: US Standard
Flip Method: Manual Flip
Input Voltage: AC 110V
Motor Voltage: DC 24V
Speed: 1-12rpm Stepless Speed Control
Power: 20W
Horizontal Load-bearing: 10kg/22.05lbs
Vertical Load-bearing: 5kg/11.02lbs
Tilt Angle: 0-90°
Three-jaw Chuck Diameter: 65mm/2.56in
Clamping Range: 2-58mm/0.08-2.28in
Support Range: 22-50mm/0.87-1.97in
Power Cord Length: 1.5m/4.92ft
Gross Weight: 11kg/24.25lbs
Product Size: 32*27*23cm/12.6*10.6*9.1in
Countertop Diameter: 20.5cm/8.07in
Package Size: 36*34*31cm/14.2*13.4*12.2in
Package Included
1*Welding Positioner
1*Foot Pedal
1*Power Cord
1*English Manual
2*Chuck Keys
