Welding Positioner Positioning Turntable Rotational

Welding Positioner Turntable Table, LEHUNDI HD10 110V 0 to 90° Welding Positioner Positioning Turntable Rotational Speed 2-20 r/min Portable Welder Positioner Turntable Machine

    Contact us
    Product Detail

    IMG_256IMG_257IMG_258IMG_259IMG_260IMG_261

    • WIDE APPLICATION】: This positioner turntable machine is suitable for under 10KG flange clamping workpieces with manual welding, and is used with welding operation machines to achieve automatic welding. Also for cutting, grinding, assembly, testing, and other processes.
    • 【PARAMETER】: horizontal loading capacity 10KG; Vertical loading capacity 5KG; Working table diameter 180MM; Working table height 220MM; Working table tilting angle 0-90° ; Working table speed 2-20r/min
    • 【RUGGED BODY】: This Positioner Turntable Machine is made of high-quality aluminum alloy, precision craft, rotates smoothly & stable, and is portable and lightweight as an ideal portable machine.
    • 【EASY to USE】: The HD-10 positioner turntable machine can work with welding operation machines to achieve automatic welding, and Can be fixed on the working table or specific tooling for clamping workpieces with manual welding.

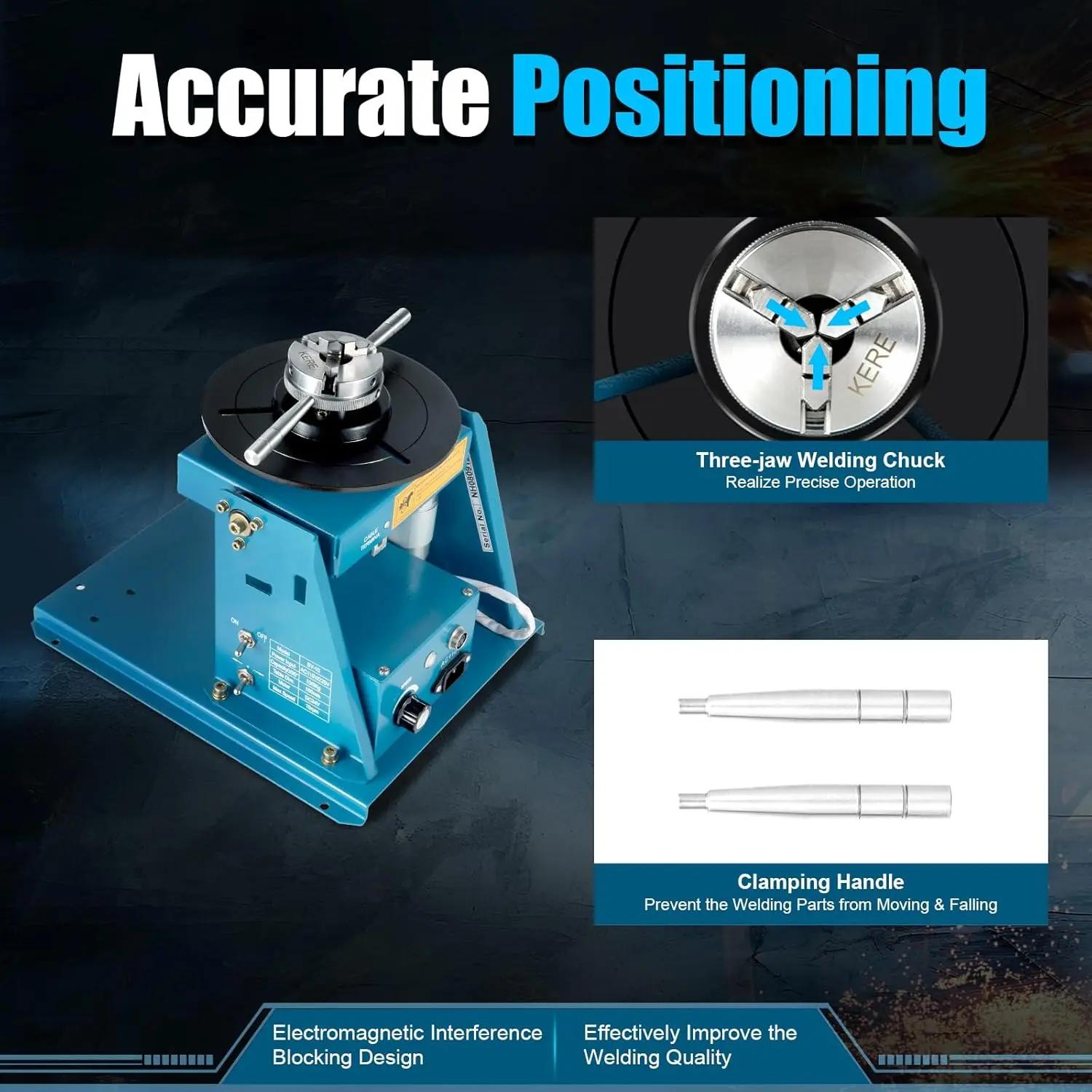

    • 【HIGH ACCURACY】: HD-10 is designed with Anti-electromagnetic technology, it can efficiently reduce high-frequency interference on TIG welding. The precision fuselage uses the most sophisticated mechanical connections that can avoid the weldment pieces from moving and falling.



    Application

    It can be fixed on the working table or specific tooling for clamping work piece with manual welding, and can also be used with a welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing, and other processes. It is especially suited for welding flanges, tubes, rounds and other parts up to 22.05 lbs.

    IMG_262

    Packages

    • 1x Rotary Welding Positioner Turntable Table
    • 1x foot pedai
    • 1x mini chuck
    • 1x power line
    • Note:The speed can be adjusted with the white knob
    Wide Application

    For working table or specific tooling for clamping workpiece with manual welding,welding operation machine to achieve automatic welding, and for cutting, grinding, assembly, testing and other processes.

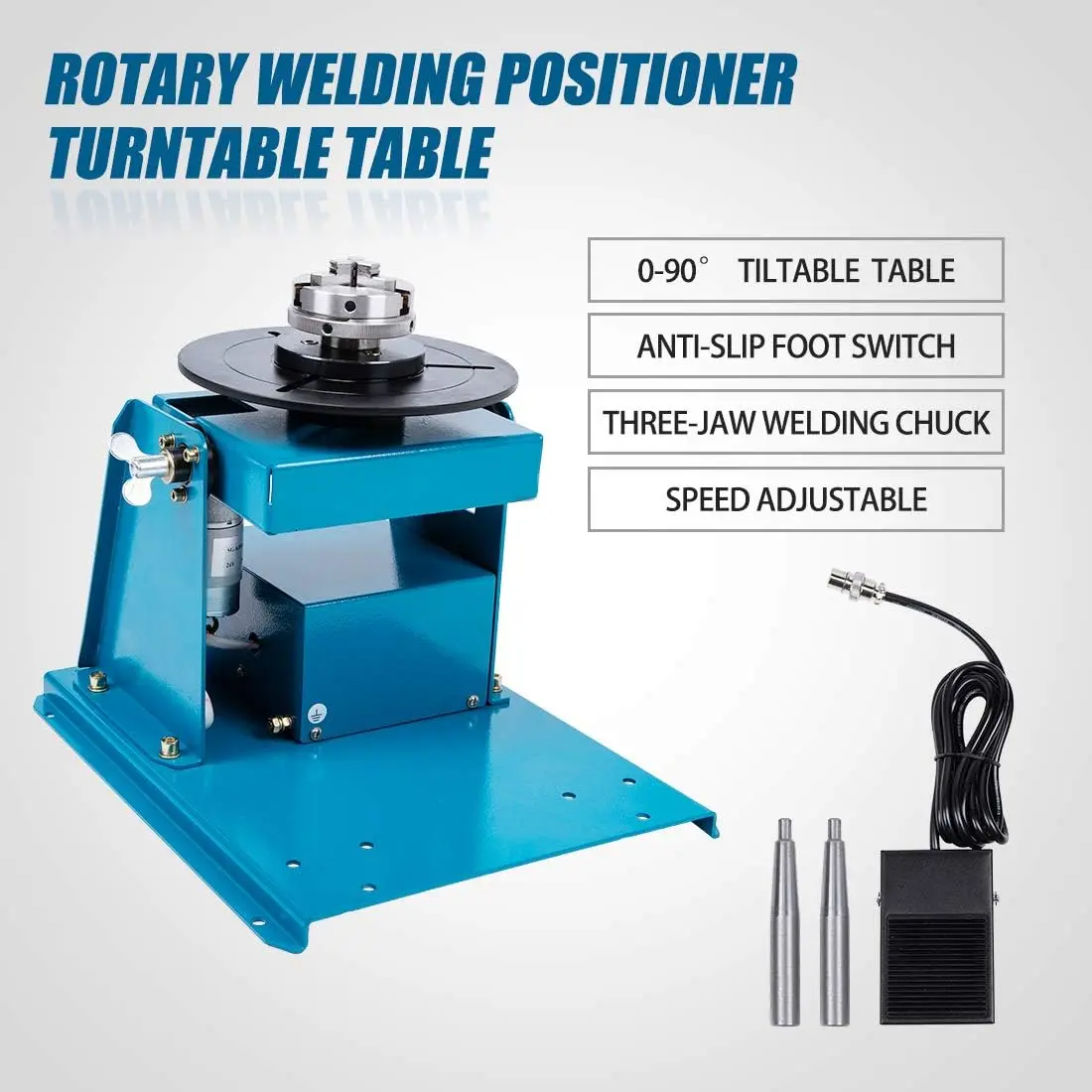

    Rotary Welding Positioner Turntable Table

    Specifications

    Material: Cast Iron

    Workbench Rollover: Manual

    Working Table Speed: 2-10 r/min

    Max Speed: 10rpm

    Working Table Tilting Angle: 0-90°

    Working Table Diameter: 180 mm /7.09 Inch

    Foot Switch Cord Length: 202.5 CM/6.64 FT

    Horizontal loading capacity: 10 KG / 22.05 lbs

    Vertical loading capacity ：5 KG /11.02 lbs

    Input Voltage: AC 110V 60HZ

    Rated Welding Current: 80A

    Rotary Motor Voltage: DC 24V

    Rotary Motor Power: 15W

    Power Cord Length: 183cm/5.9ft

    Product Size: 32*27*28cm/12.6*10.63*11.02inch

    Package Size: 35*30.5*34.5cm/ 13.78*12*13.58inch

    Net Weight: 8.55kg/18.85lbs

    Gross Weight: 9.25kg/20.39lbs
