Product Description

Application

It can be fixed on the working table or specific tooling for clamping work piece with manual welding, and can also be used with a welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing, and other processes. It is especially suited for welding flanges, tubes, rounds and other parts up to 22.05 lbs.

Packages

• 1x Rotary Welding Positioner Turntable Table
• 1x foot pedai
• 1x mini chuck
• 1x power line
• Note:The speed can be adjusted with the white knob

Wide Application

For working table or specific tooling for clamping workpiece with manual welding,welding operation machine to achieve automatic welding, and for cutting, grinding, assembly, testing and other processes.

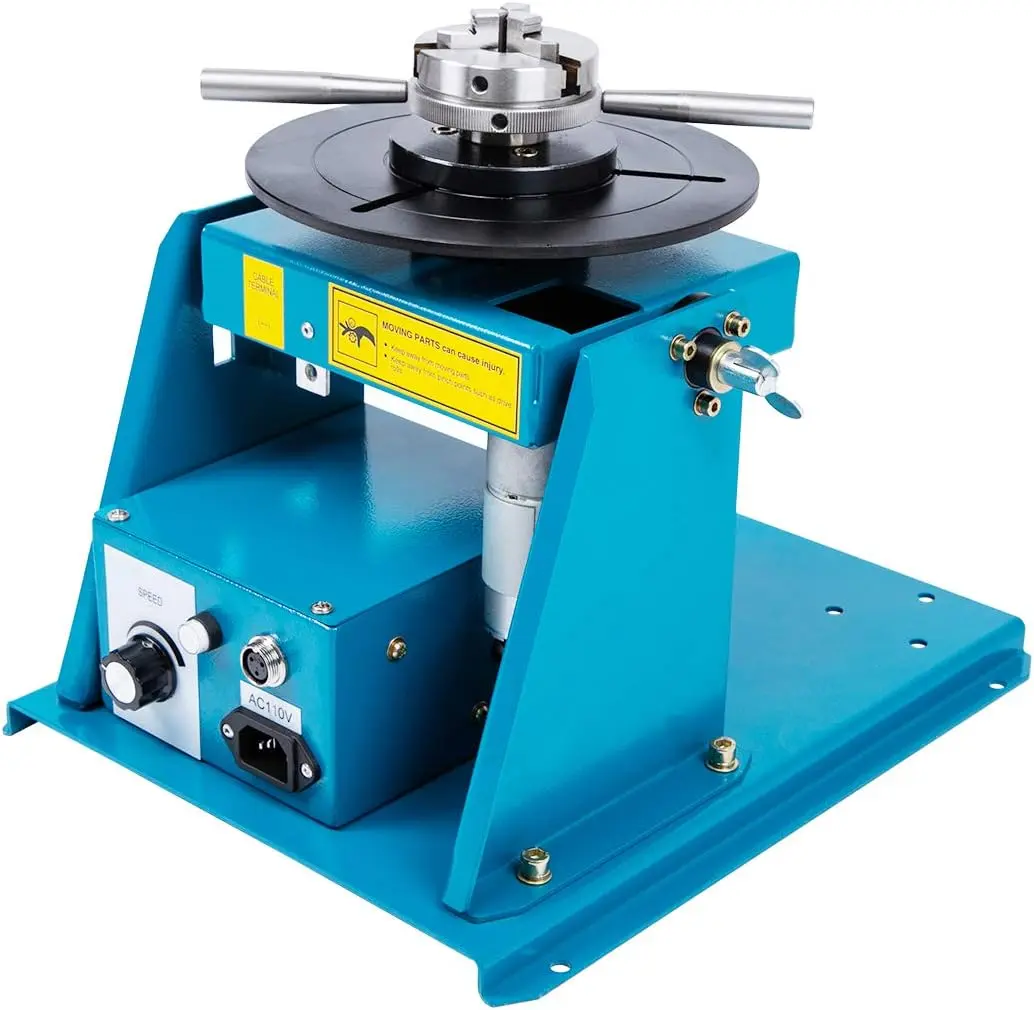

Rotary Welding Positioner Turntable Table

Specifications

Material: Cast Iron

Workbench Rollover: Manual

Working Table Speed: 2-10 r/min

Max Speed: 10rpm

Working Table Tilting Angle: 0-90°

Working Table Diameter: 180 mm /7.09 Inch

Foot Switch Cord Length: 202.5 CM/6.64 FT

Horizontal loading capacity: 10 KG / 22.05 lbs

Vertical loading capacity ：5 KG /11.02 lbs

Input Voltage: AC 110V 60HZ

Rated Welding Current: 80A

Rotary Motor Voltage: DC 24V

Rotary Motor Power: 15W

Power Cord Length: 183cm/5.9ft

Product Size: 32*27*28cm/12.6*10.63*11.02inch

Package Size: 35*30.5*34.5cm/ 13.78*12*13.58inch

Net Weight: 8.55kg/18.85lbs

Gross Weight: 9.25kg/20.39lbs

Three-Jaw Welding Chuck

Three claws are reinforced to prevent the weldment pieces from moving and falling.It is upgraded to be more accurate and more practical.

Anti-Slip Foot Switch

Using foot switch to control table rotation, the speed is regulated by the knob on the machine(2-20r/min stepless speed regulation).

1) The wire terminal icon of welder or cutter machine negative electrode (or anode) MARK: cable terminal(-)

REMARK: Here the connection cable specifications and requirements, see the requirements configured welder or cutter.

2) The ground terminal of the control circuit and the control box, MARK:

REMARK:The posts beside this mark, be sure to use 4mm wire to connect the earth , to avoid damage.

When using the product, if you encounter any problems, please -(Arriage) in time, our technical team will provide you with help and solutions within 24 hours.
