Welding Positioner Turntable Timing Function

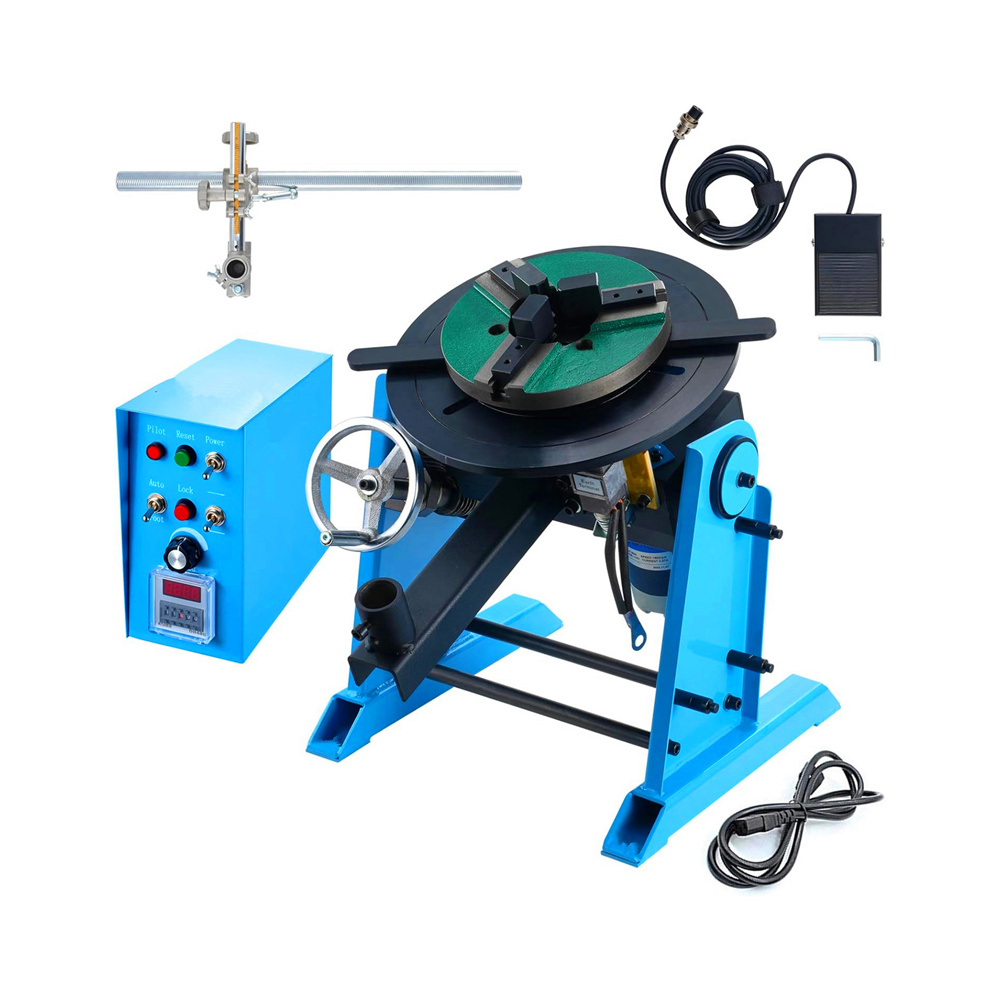

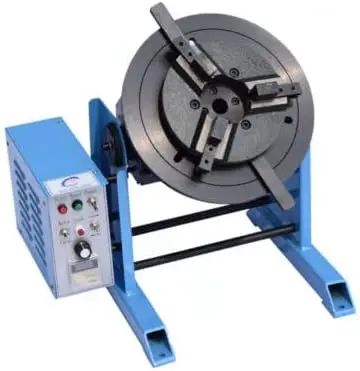

Welding Positioner Turntable Timing Function, With 300mm Chuck 220V

Weight capacity - The welding positioner turntable can support up to 30KG of weight, making it suitable for a wide variety of welding applications.
Chuck size - The turntable comes with a 300mm chuck, providing ample space for securing and holding materials in place during the welding process.
Timing function - The turntable features a timing function that allows users to control the speed and duration of the rotation, ensuring precise and consistent welding results.
Easy operation - The positioner is designed with user-friendly controls that are easy to operate, even for novice welders.
Power supply - The turntable runs on 220V power, which is a common voltage for welding equipment, making it easy to integrate into existing welding setups.

Product Detail

Product Description

Parameter:
△ Power Input: AC 220V / 50Hz
△ Capacity (horizontal loading): 30kg
△ Capacity (vertical loading): 15kg
△ Rotary table diameter: 310mm
△ Rotary table height: 380mm
△ Chuck Size: 300mm
△ Rotary speed: 1~15 R/Min
△ Central Hole Diameter: 25mm
△ Angle of inclination: 0~90°
△ Rotary motor: DC 110V 60W
△ N.W: 46kg

Description:
△ The rotation structure is driven by DC motor, stepless speed regulation can be achieved;
△ The tile range of rotary table is 0~90°, worker can set the shaft, so the welding at arbitrary angle can be achieved.
△ Special design of anti-electromagnetic, which reduce the high frequency interference of TIG’S welding
△ A time-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
△ The adjustable-welding gun support can be furnished to fix the position of the welding torch.
△ The welding chuck and air-powered tailstack can be furnished to achieve the function of self holding to the workpiece quality effectively.
