Welding Roller Frame

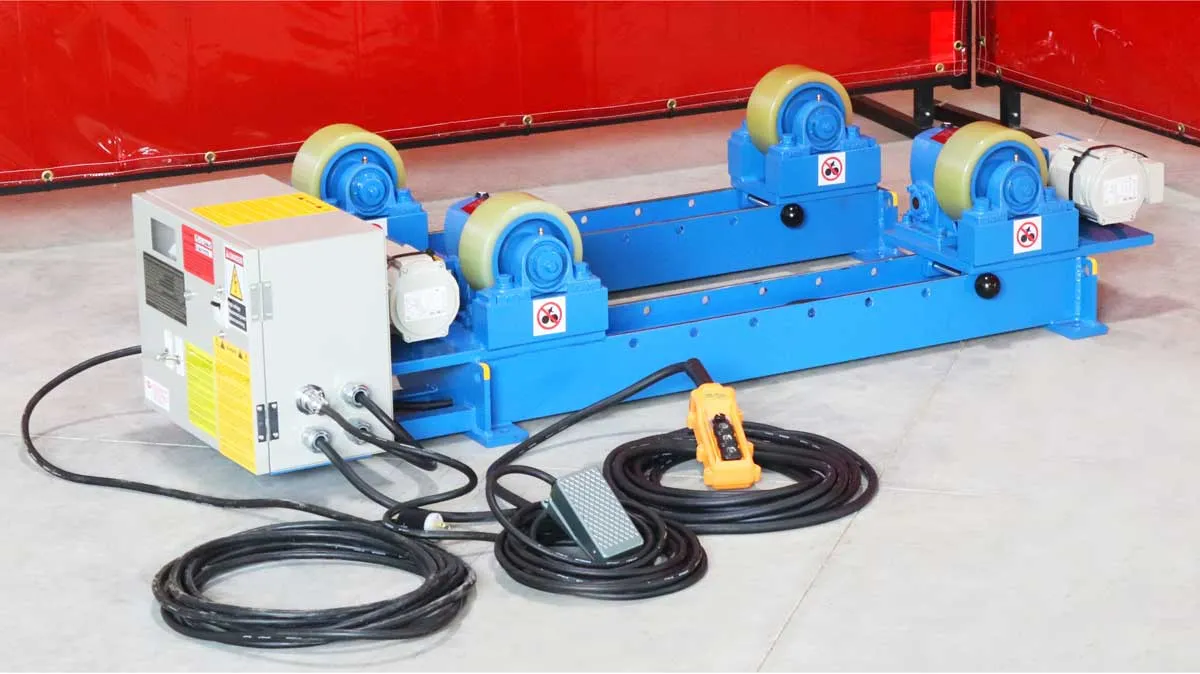

Turning Rolls Linkage Roller is a kind of welding auxiliary equipment, which is commonly used for welding inner and outer circumferential seam and inner and outer longitudinal seam of cylinder workpiece.

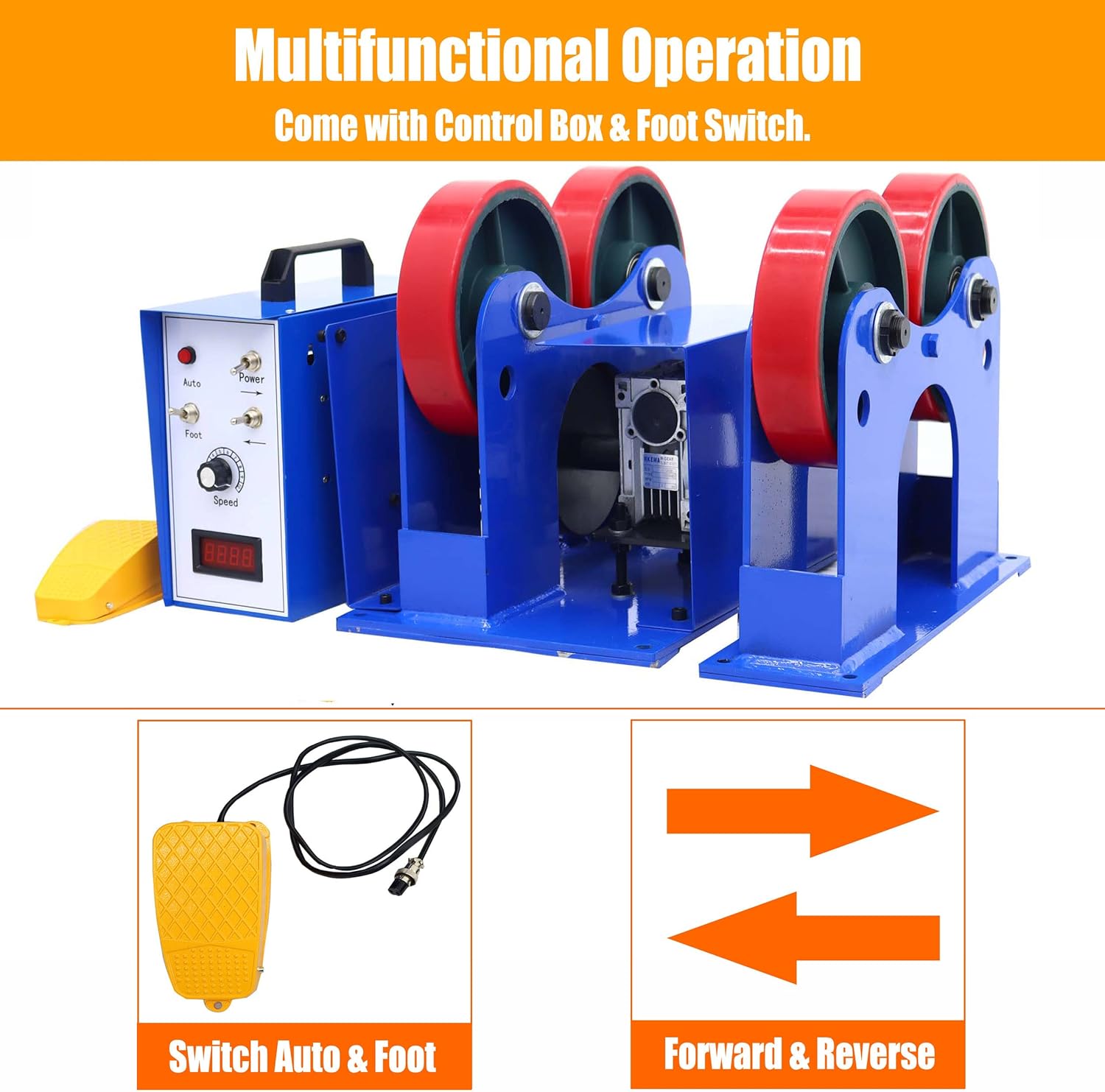

• Welding turning rotation is mainly used to holding and turning the workpiece while welding, it's a king of welding auxilary machine.

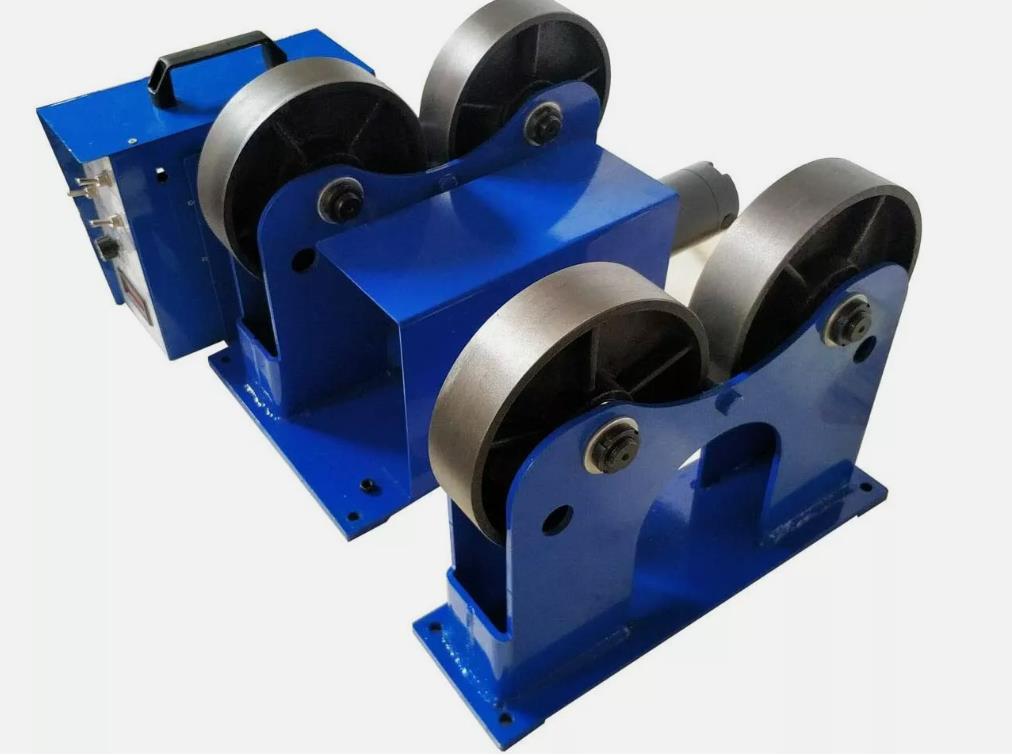

• This turning roll has a brief and compact structural design, it is small in size ,light weight, can work in any environment.
• It suits the cylindric workpieces weighting less than 3000kg/6600 lb and diameter at 70-1900mm, while stepless speed regulation can be achieved within the 1900mm/min, simplicity of operation, can be installed and moved easily.

Turning Rolls Linkage Roller: Weld Faster and Smarter

Description

• Turning Rolls Linkage Roller is a kind of welding auxiliary equipment, which is commonly used for welding inner and outer circumferential seam and inner and outer longitudinal seam of cylinder workpiece.
• This machine can be matched to welding operation machine and submerged arc welding machine, etc. The transmission device of the machine drives the driving roller, and the friction force between the driving roller and the cylinder workpiece drives the workpiece to rotate to realize the displacement.

Turning Rolls Linkage Roller 1000KG/2205LBS Loading Welding Turning Roll

With the rolls you won't have setup or down time due to lost or bent drive shafts used by most other turning rolls. Don’t get burned by other obsolete drive shaft, chain or friction drive turning rolls. MAC Twin Drive Roll System offers the most reliable, steady, and maintenance free drive system available in turning rolls.

Specifications of Tank Turning Roll

• Input Power: AC 120 volt 60 Hz Single Phase
• Maximum load capacity per set of one drive roll and one idler roll: 6,600 lb.
• Maximum work-piece diameter: 79 in.
• Work-piece diameter range: 7.9 in. to 78.7 in.
• Speed Range: 3.5 to 35.4 in./min.
• Approximate shipping weight per set: 580 lb.
