Welding Rolls

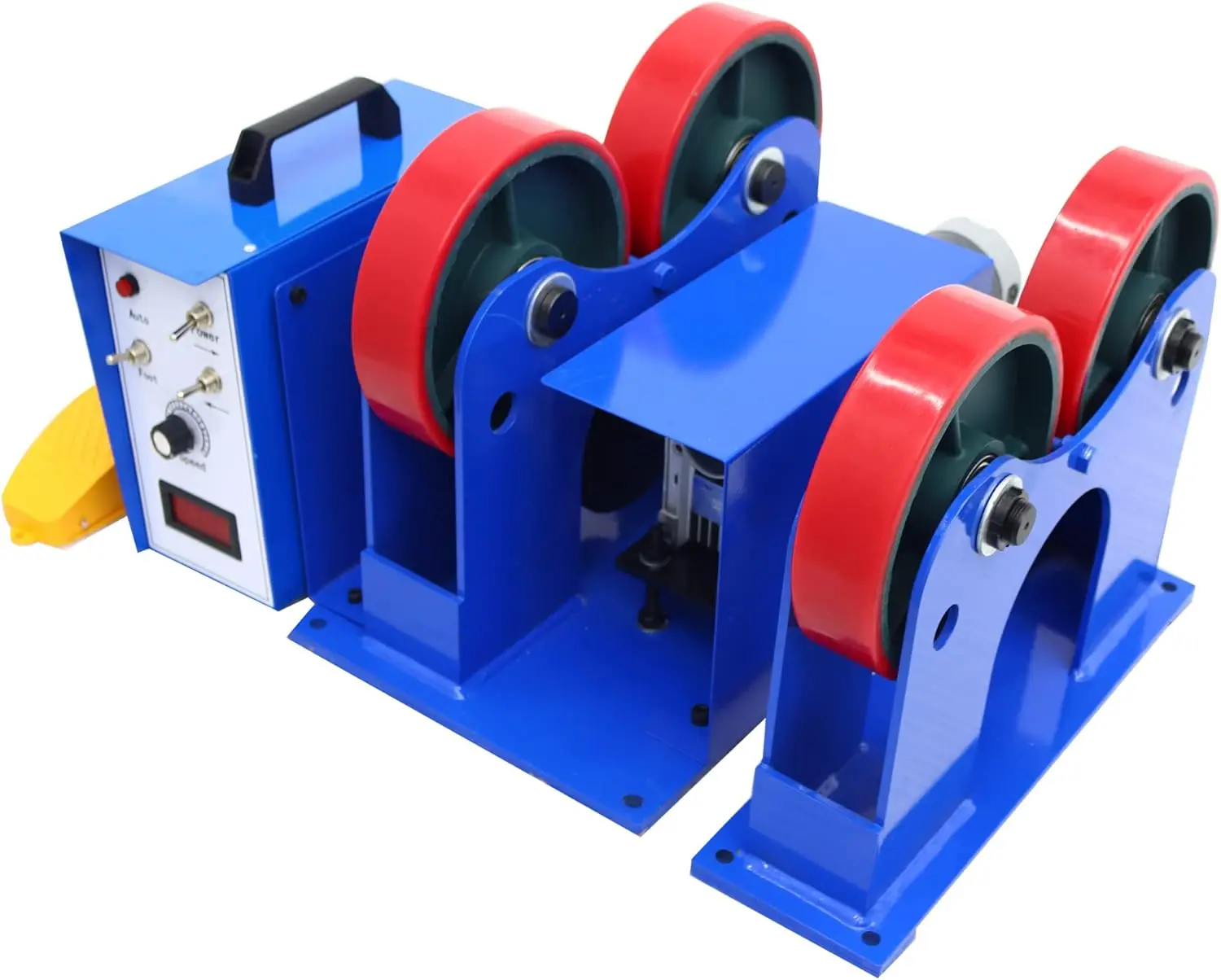

POPWELD Turning Rolls Linkage Roller Machine Positioner Roller Welder Rotator with Digital Display AC110V 2000LB Capacity

    Contact us
    Product Detail

     Product Description

    2



    • Turning Rolls Linkage Roller is a kind of welding auxiliary equipment, which is commonly used for welding inner and outer circumferential seam and inner and outer longitudinal seam of cylinder workpiece.
    • This machine is composed of base, driving roller, driven roller, bracket, transmission device, power unit drive, etc.
    • The transmission device of the machine drives the driving roller, and the friction force between the driving roller and the cylinder workpiece drives the workpiece to rotate to realize the displacement.
    • Welding Turning Rolls can realize the horizontal position welding of the inner and outer circumferential seam and inner and outer longitudinal seam of the workpiece, and the matching automatic welding equipment can realize automatic welding, which can greatly improve the welding quality, reduce the labor intensity and improve the work efficiency.
    • The welding roller carrier can also be used for manual welding or as a device for detecting and assembling cylinder workpiece.



    KEY FEATURES

    2

    2

    2

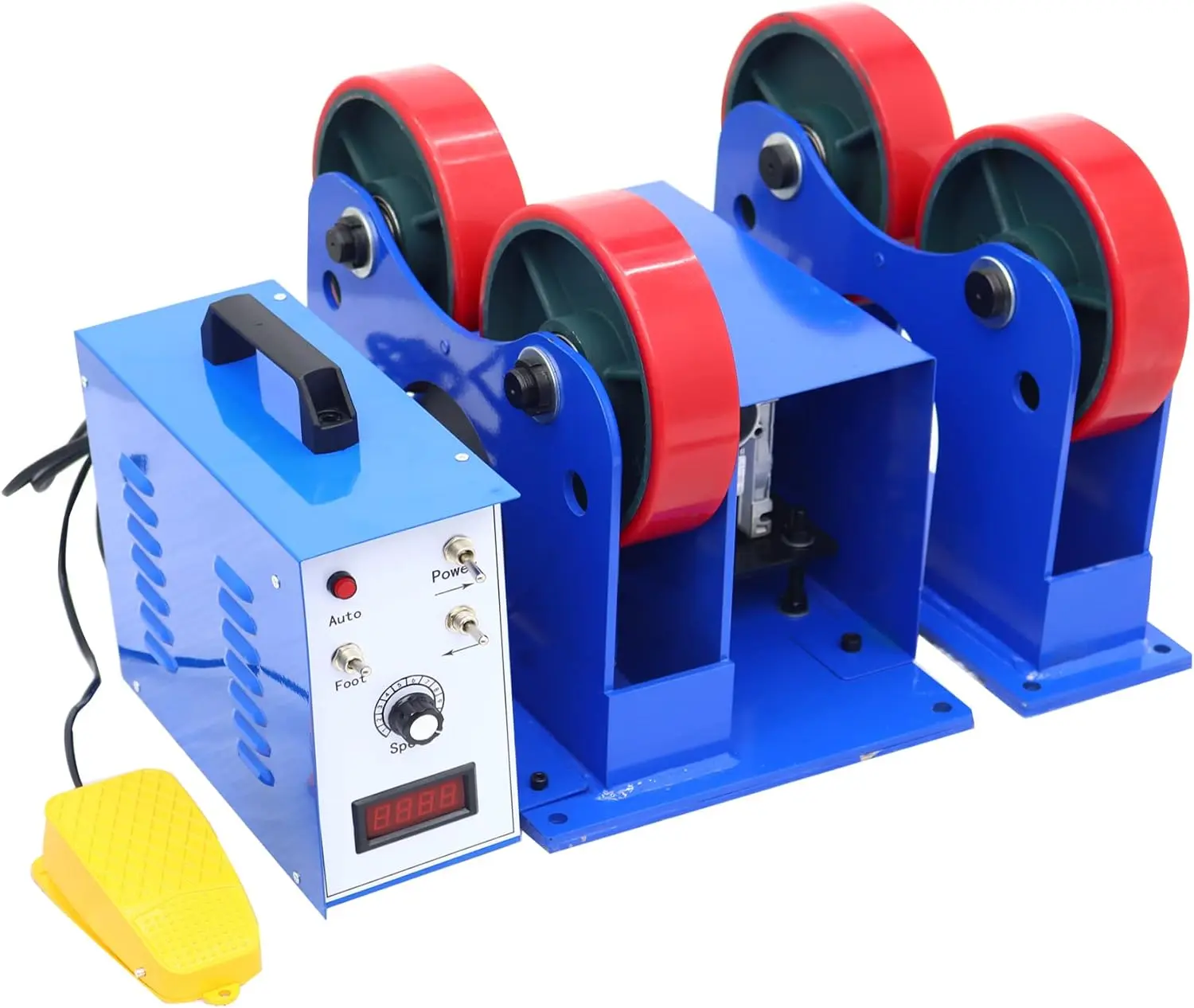

    Digital Display Control System



    • A control box and a pedal pump for speed control. And they can save you a lot of time and energy because you can control the machine with several easy steps.
    • The control box is digital display and it can be hung on the left side of the machine for easy operation.
    • It can show the speed of the wheel.



    Polyurethane Wheel



    • The wheel surface of the machine is covered with a thick layer of polyurethane, which can effectively increase the friction between the workpiece and the wheel.
    • In the process of rotation, the workpiece and the wheel rotate at the same time without deviation.



    Powerful Motor



    • The machine is equipped with a high-torque motor, which can effectively drive the workpiece to rotate within the load-bearing range.
    • Silent motor, low noise during work, no vibration.
    • It adopts a powerful motor offering a large driving force, stable and reliable operation. And no shock during startup.





    2

    2

    2

    Adjustable Hole



    • The Polyurethane wheel of the machine has 2 holes inside and outside to choose from.
    • Different options can fit different workpiece diameters.



    Convenient



    • This iron plate can be installed on the left side of the machine, adjust the control box and the three screws on the iron plate to align the control box on the machine body.



    Control



    • 2 Types of Operation: Auto Control, Foot Switch.
    • Wheels can rotate backwards and forwards.
    • Speed Control Rotary Knob
    • Speed Range: 80～1100mm/min
    • This velocity is the linear velocity.







    2

    2













    Working Voltage

    AC110V/60Hz

    AC110V/60Hz

    Load Capacity

    1000KG/2200LB

    1000KG/2200LB

    Speed Range

    80～1100 mm/min

    80～1100 mm/min

    Diameter Range

    20～800mm

    50～600mm

    Roller Typ

    50mm(W)×250mm(D)

    50mm(W)×200mm(D)

    Active Wheel Size

    500*300*400mm

    430*300*400mm

    Inner Hole

    20-400mm

    50-260mm

    Outside Hole

    400-800mm

    260-600mm

    MPN

    022454

    022383









    2

    Package Content



    • Active wheel*1
    • Driven wheel*1
    • Power cord*1
    • Control box*1
    • Foot switch*1
    • Wooden case*1



    Application



    • Welding turning roller can be matched to a welding operation machine and submerged arc welding machine, etc.
    • The machine mainly applied to pipeline welding including inside and outside of the pipe.



    Attention

    • Do not exceed the maximum load-bearing range of the machine.
    • The machine needs to be grounded.
    • It is not recommended to use this machine for parts that are too fine.
    • The control boxes are all digital display.
    • Item is more suitable for workpieces under 600mm diameter.
    • The appearance of the two machines is slightly different.









    Top

    About this item

    Product information

    Questions

    Reviews



    Product information

    Technical Details

    Manufacturer

    ‎POPWELD

    Part Number

    ‎POP2

    Package Dimensions

    ‎24 x 23 x 19 inches

    Size

    ‎2200 LB/ 1T

    Color

    ‎Blue

    Material

    ‎Metal

    Item Package Quantity

    ‎1

    Plug Format

    ‎A- US style
