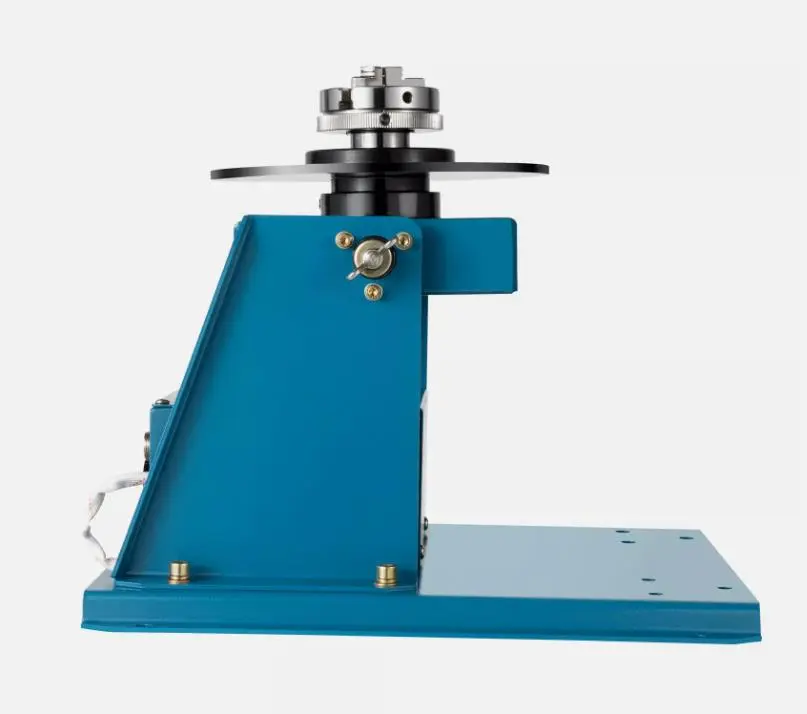

Rotary Welding Positioner Turntable Table
Key Features
Build to Last: It is made of high-quality cast iron and adopts spray molding technology, which has good wear resistance and corrosion resistance. You can use it for a long time.
Excellent Performance: It is driven by a 10W high-quality DC motor for smooth and stable operation. With a load capacity of up to 11.02 lbs (vertical) or 22.05 lbs (horizontal), it meets most welding tasks and ensures efficient welding.
Accurate Positioning: The equipped three-jaw welding chuck can prevent the welding parts from moving and falling, making the work more accurate. Moreover, the special anti-electromagnetic interference design effectively reduces the high-frequency interference during TIG welding, which can effectively improve the welding quality.
Adjustable Speed: This machine allows for infinite adjustments of the rotating speed from 2-10rpm through the control knob, making it easy for you to adjust the speed according to different welding processes.
Tiltable Table: It has a table flip angle of 0-90º, which can be fixed at any angle by the knob on the machine to meet a wide range of welding needs.

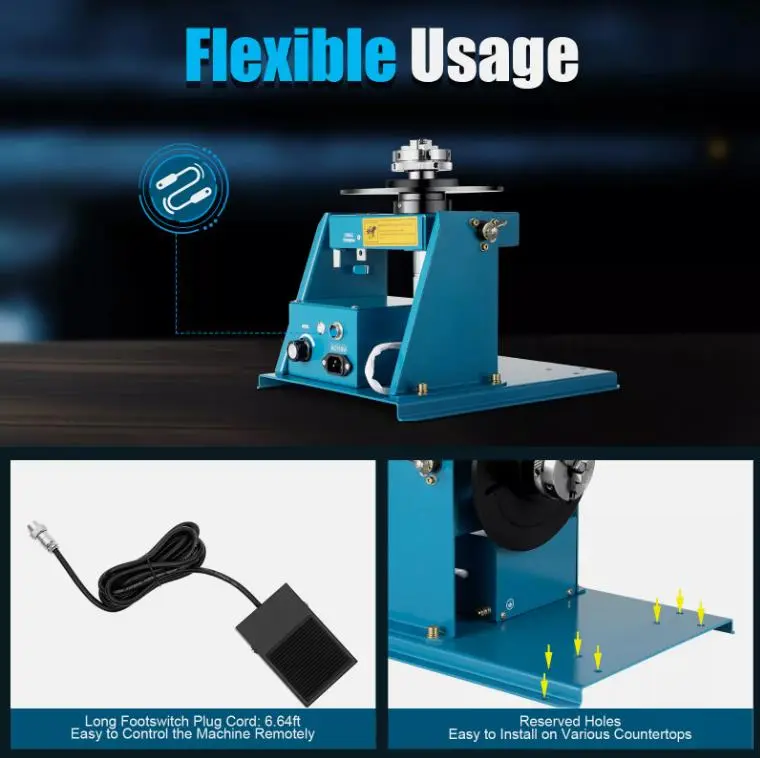

Flexible Usage: The reserved holes on its base allow you to securely fasten it to most countertops, and the 6.64ft long footswitch plug cord makes it easier to control the machine remotely.
Protective Package: Multiple packaging of sponge, plastic bag and cartons can effectively protect our product in transit.
Guaranteed Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Power Indicator Light: It can indicate that the machine has been powered on and is working, bringing you more convenience during operation.
Power Cord: The 5.9ft long power cord has sufficient length to facilitate your movement to the desired work position. It can also keep you away from the power supply, making it safer to use.
Large Screws: High-quality large screws can firmly fix the machine and improve the overall stability of the machine.
Application
It can be fixed on the working table or specific tooling for clamping workpiece with manual welding, and can also be used with a welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing, and other processes. It is especially suited for welding flanges, tubes, rounds and other parts up to 22.05 lbs.
Specification
Color: Blue
Model: BY-10
Martial: Cast Iron
Process: Spraying Molding
Plug: US Standard
Input Voltage: AC 110V
Rated Welding Current: 80A
Workbench Rollover: Manual
Rotary Motor Voltage: DC 24V 15W
Rotary Motor Power: 10W
Working Table Speed: 2-10 r/min
Max Speed: 10rpm
Horizontal Loading Capacity: 10kg/22.05lbs
Vertical Loading Capacity: 5kg/11.02lbs
Working Table Tilting Angle: 0-90°
Working Table Diameter: 180mm/7.09inch
Foot Switch Cord Length: 202.5cm/6.64ft
Power Cord Length: 183cm/5.9ft
Product Size: 32*27*28cm/12.6*10.63*11.02inch
Package Size: 35*30.5*34.5cm/ 13.78*12*13.58inch
Net Weight: 8.55kg/18.85lbs
Gross Weight: 9.25kg/20.39lbs
Package Included
1*Rotary Welding Positioner Turntable Table
1*Foot Switch
1*Power Cord
2*Clamping Handles
1*English Manual
